ZOOM sources can be moved and added at will, with extreme simplicity, through the snap fastening system.
Adjustable optics from 12 to 46 degrees for the best adaptation of the light effect.
Painted aluminum body.
Dimmable electronics available in “ONE BY ONE” and PWM version.
LEVEL / ZOOM
ZOOM “ONE BY ONE” uses an innovative power line communication technology for the control and dimming of the LED circuit.
By combining the 150W driver [40201] with the sources, they can be managed one by one [DALI /DALI 2].
ZOOM is also available in the PWM dimmable version: in this solution the sources are managed all together [DALI, Isolated pushbutton, 100K Linear Potentiometer, 0-10V Passive, 1-10V Passive].
ZOOM with its rotating zoom optic [patent pending] allows endless beams from 12 to 46 degrees.
Different shade LEDs [2700K, 3000K]. CRI 97.
ZOOM sources can be connected to other types of systems [DALI, Insulated pushbutton, Potentiometer Linear 100K, 0-10V Passive, 1-10V Passive].
In the ONE BY ONE dimmable version the sources can be controlled separately (DALI), in the PWM dimmable version they are all controlled together.
Rotating optic [patent pending] allows endless beams from 12 to 46 degrees.

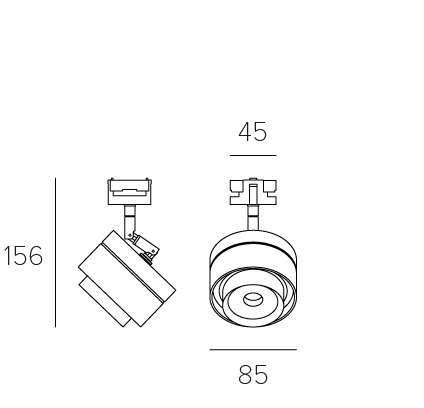

Adjustable light source

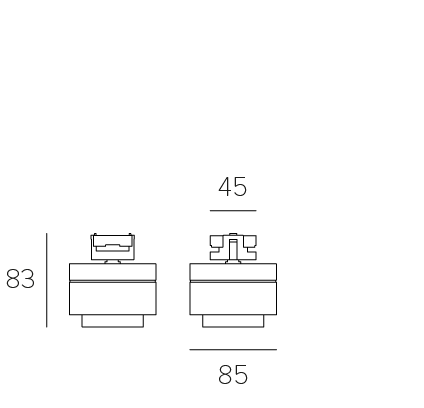

Fixed light source

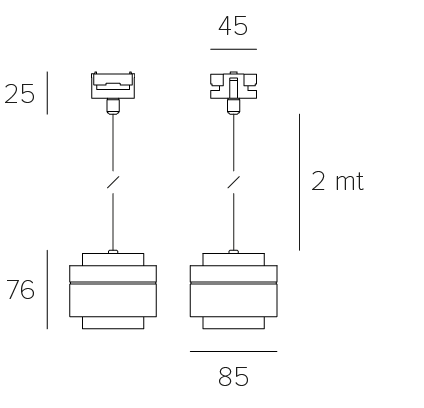

Suspension
ON-OFF / PWM Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
45300 White
45500 Black
3000K CRI 97 – 878 / 1068 lm
45301 White
45501 Black
ON-OFF / PWM Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
45320 White
45520 Black
3000K CRI 97 – 878 / 1068 lm
45321 White
45521 Black
ON-OFF / PWM Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
45310 White
45510 Black
3000K CRI 97 – 878 / 1068 lm
45311 White
45511 Black
ONE BY ONE Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
41300 White
41500 Black
3000K CRI 97 – 878 / 1068 lm
41301 White
41501 Black
ONE BY ONE Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
41320 White
41520 Black
3000K CRI 97 – 878 / 1068 lm
41321 White
41521 Black
ONE BY ONE Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
41310 White
41510 Black
3000K CRI 97 – 878 / 1068 lm
41311 White
41511 Black
Dimmable converter included.
Adjustable optic 12° – 46°
Dimmable converter included.
Adjustable optic 12° – 46°
Dimmable converter included.
Adjustable optic 12° – 46°
Adjustable cable.
Kg 0.33
Kg 0.30
Kg 0.42
Adjustable light source
ON-OFF / PWM Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
45300 White
45500 Black
3000K CRI 97 – 878 / 1068 lm
45301 White
45501 Black
ONE BY ONE Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
41300 White
41500 Black
3000K CRI 97 – 878 / 1068 lm
41301 White
41501 Black
Dimmable converter included.
Adjustable optic 12° – 46°
Download
Kg 0.33
Fixed light source
ON-OFF / PWM Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
45320 White
45520 Black
3000K CRI 97 – 878 / 1068 lm
45321 White
45521 Black
ONE BY ONE Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
41320 White
41520 Black
3000K CRI 97 – 878 / 1068 lm
41321 White
41521 Black
Dimmable converter included.
Adjustable optic 12° – 46°
Download
Kg 0.30
Suspension
ON-OFF / PWM Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
45310 White
45510 Black
3000K CRI 97 – 878 / 1068 lm
45311 White
45511 Black
ONE BY ONE Dimmable 1 x 13W – 48V
2700K CRI 97 – 831 / 1010 lm
41310 White
41510 Black
3000K CRI 97 – 878 / 1068 lm
41311 White
41511 Black
Dimmable converter included.
Adjustable optic 12° – 46°
Adjustable cable.
Download
Kg 0.42
