LEVEL / System

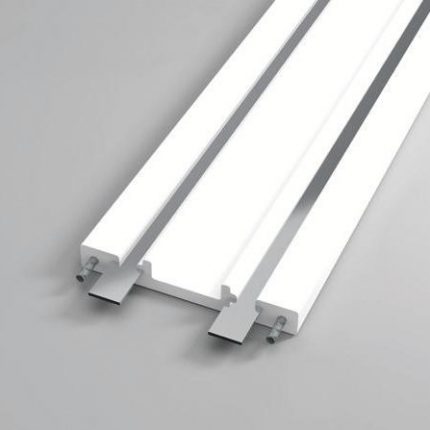

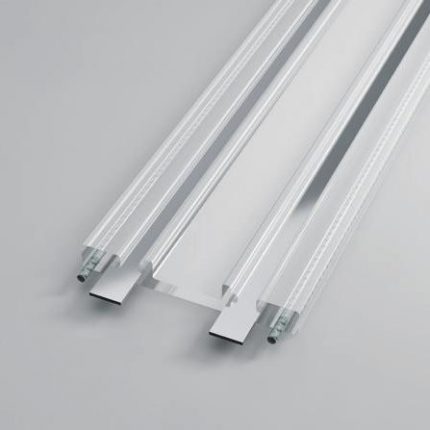

Transparent cable
White cable
Black cable
Strip LED

40001 5 mt
40002 10 mt

40301 5 mt
40302 10 mt

40501 5 mt
40502 10 mt

196 LED/mt – 13W/mt – 48V

2700K – 1430 lm/mt
40700 5 mt
40710 10 mt

3000K – 1510 lm/mt
40701 5 mt
40711 10 mt

Cable not included

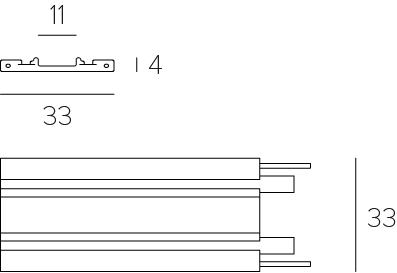

Level_Sistema_StripLed

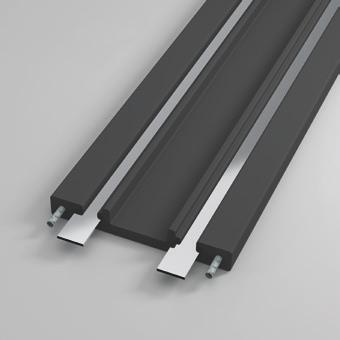

PVC cable, nickel-plated copper conductors, steel cables. Packaging includes an additional meter of cable to facilitate the installation phase. The maximum admissible load is 150W [48V]. Compatible with LED strips with a maximum width of 10mm.

PVC cable, nickel-plated copper conductors, steel cables. Packaging includes an additional meter of cable to facilitate the installation phase. The maximum admissible load is 150W [48V]. Compatible with LED strips with a maximum width of 10mm.

PVC cable, nickel-plated copper conductors, steel cables. Packaging includes an additional meter of cable to facilitate the installation phase. The maximum admissible load is 150W [48V]. Compatible with LED strips with a maximum width of 10mm.

Strip LED flessibile e dimmerabile. Fissaggio al cavo mediante biadesivo integrato. Tagliabile in misura ogni 71,5 mm.

Kg 0.19 / 100cm

Kg 0.19 / 100cm

Kg 0.19 / 100cm

Kg 0.15 / 100cm

Transparent cable

40001 5 mt
40002 10 mt

PVC cable, nickel-plated copper conductors, steel cables. Packaging includes an additional meter of cable to facilitate the installation phase. The maximum admissible load is 150W [48V]. Compatible with LED strips with a maximum width of 10mm.

Download

Kg 0.19 / 100cm

White cable

40301 5 mt
40302 10 mt

PVC cable, nickel-plated copper conductors, steel cables. Packaging includes an additional meter of cable to facilitate the installation phase. The maximum admissible load is 150W [48V]. Compatible with LED strips with a maximum width of 10mm.

Download

Kg 0.19 / 100cm

Level cavo nero

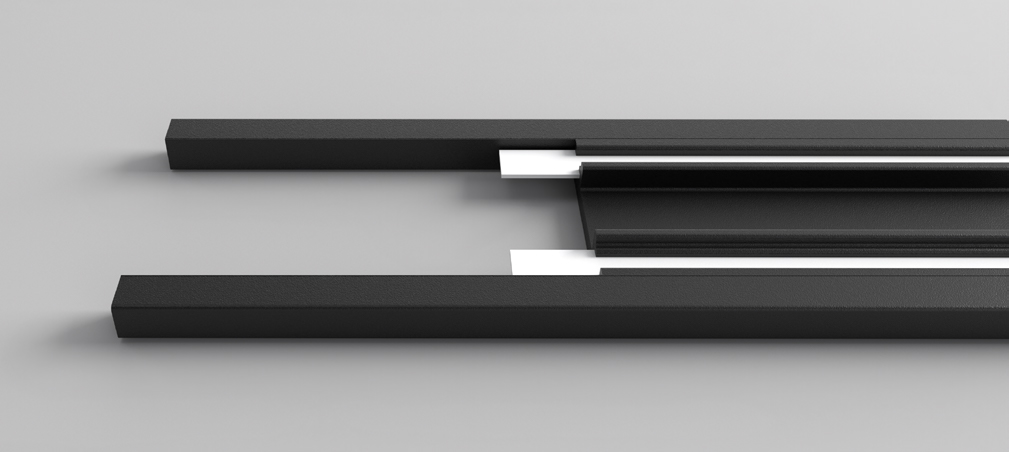

Black cable

40501 5 mt
40502 10 mt

PVC cable, nickel-plated copper conductors, steel cables. Packaging includes an additional meter of cable to facilitate the installation phase. The maximum admissible load is 150W [48V]. Compatible with LED strips with a maximum width of 10mm.

Download

Kg 0.19 / 100cm

Letroh level strip led
Strip LED

196 LED/mt – 13W/mt – 48V

2700K – 1430 lm/mt
40700 5 mt
40710 10 mt

3000K – 1510 lm/mt
40701 5 mt
40711 10 mt

Cable not included

Level_Sistema_StripLed

Strip LED flessibile e dimmerabile. Fissaggio al cavo mediante biadesivo integrato. Tagliabile in misura ogni 71,5 mm.

Download

Kg 0.15 / 100cm

Level Letroh Alimentatore centrale
Level Letroh Attacco parete
level Letroh attacco soffitto
Letroh Level Distanzai
Central power feed

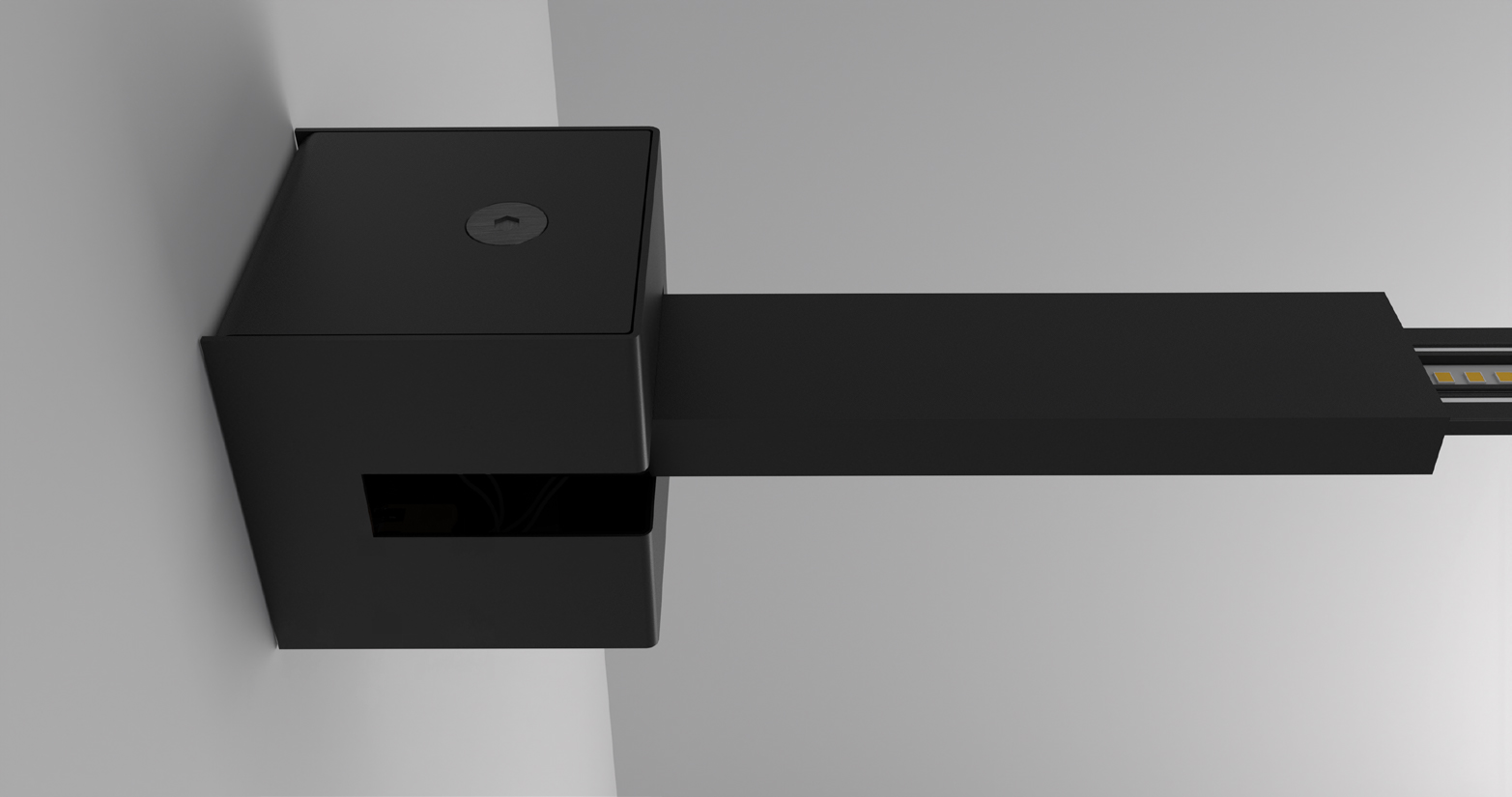

Cube wall fixing

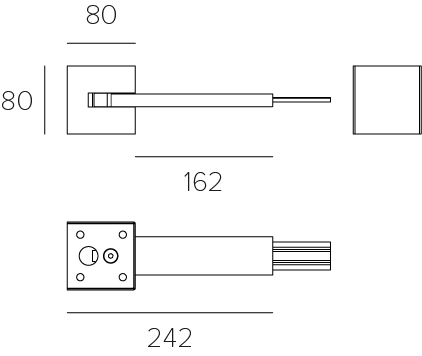

Cube ceiling fixing

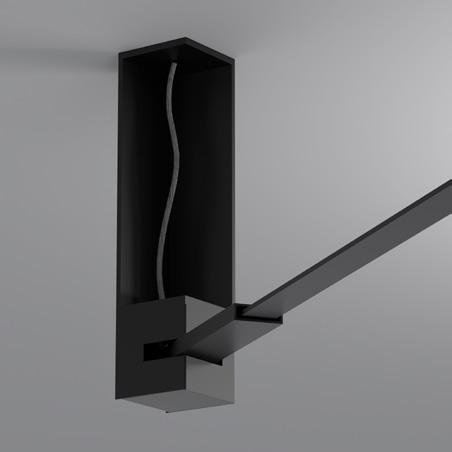

Ceiling spacer

40313 White
40513 Black

40303 White
40503 Black

40304 White
40504 Black

40305 White
40505 Black

Optional
Wire support
40110   200 cm

Optional
Wire support
40110   200 cm

Not included
Ceiling fixing
40304/40504

Level_Sistema_AttaccoParete

Allows ceiling power supply, includes 250 cm adjustable cable. To be completed with 48V power supply – Max 150W

Single ceiling attack. Allows wall power supply, includes turnbuckles. To be completed with 48V power supply – Max 150W. Maximum allowed length of the installation 10 meters. Maximum load of the lighting fixtures 3.5 Kg.

Single ceiling attack. Allows wall power supply, includes turnbuckles. To be completed with 48V power supply – Max 150W. Maximum allowed length of the installation 10 meters. Maximum load of the lighting fixtures 3.5 Kg.

Ceiling spacer, to be completed with ceiling fixing. It allows the correct use of the LED strip for indirect lighting.

Kg 0.55

Kg 1.30

Kg 1.30

Kg 3.00

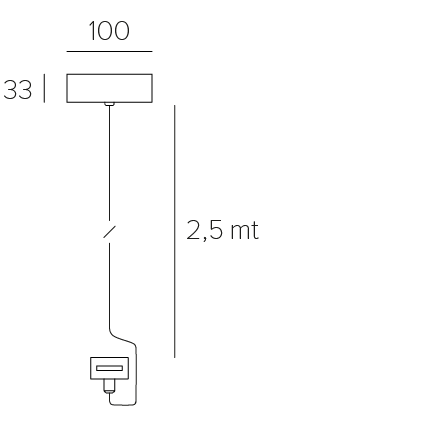

Level Letroh Alimentatore centrale
Central power feed

40313 White
40513 Black

Allows ceiling power supply, includes 250 cm adjustable cable. To be completed with 48V power supply – Max 150W

Download

Kg 0.55

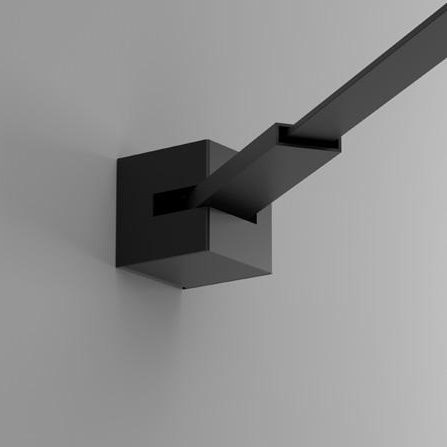

Level Letroh Attacco parete
Cube wall fixing

40303 White
40503 Black

Optional
Wire support
40110   200 cm

Level_Sistema_AttaccoParete

Single ceiling attack. Allows wall power supply, includes turnbuckles. To be completed with 48V power supply – Max 150W. Maximum allowed length of the installation 10 meters. Maximum load of the lighting fixtures 3.5 Kg.

Download

Kg 1.30

level Letroh attacco soffitto
Cube ceiling fixing

40304 White
40504 Black

Optional
Wire support
40110   200 cm

Single ceiling attack. Allows wall power supply, includes turnbuckles. To be completed with 48V power supply – Max 150W. Maximum allowed length of the installation 10 meters. Maximum load of the lighting fixtures 3.5 Kg.

Download

Kg 1.30

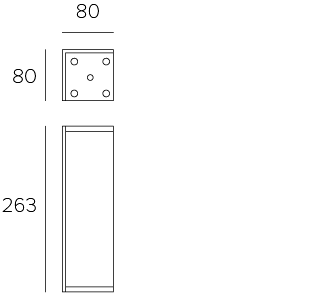

Letroh Level Distanzai
Ceiling spacer

40305 White
40505 Black

Not included
Ceiling fixing
40304/40504

Ceiling spacer, to be completed with ceiling fixing. It allows the correct use of the LED strip for indirect lighting.

Download

Kg 3.00

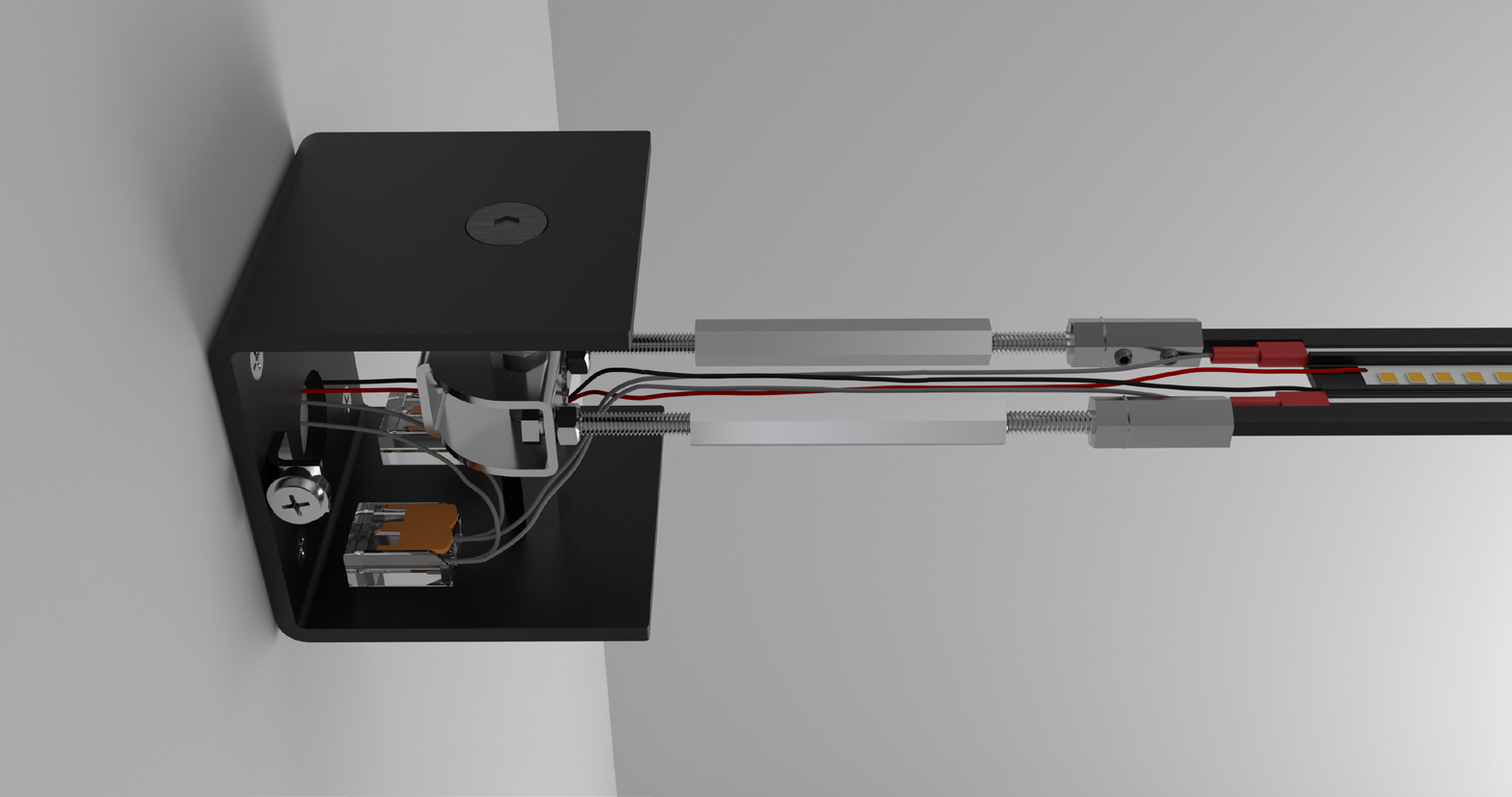

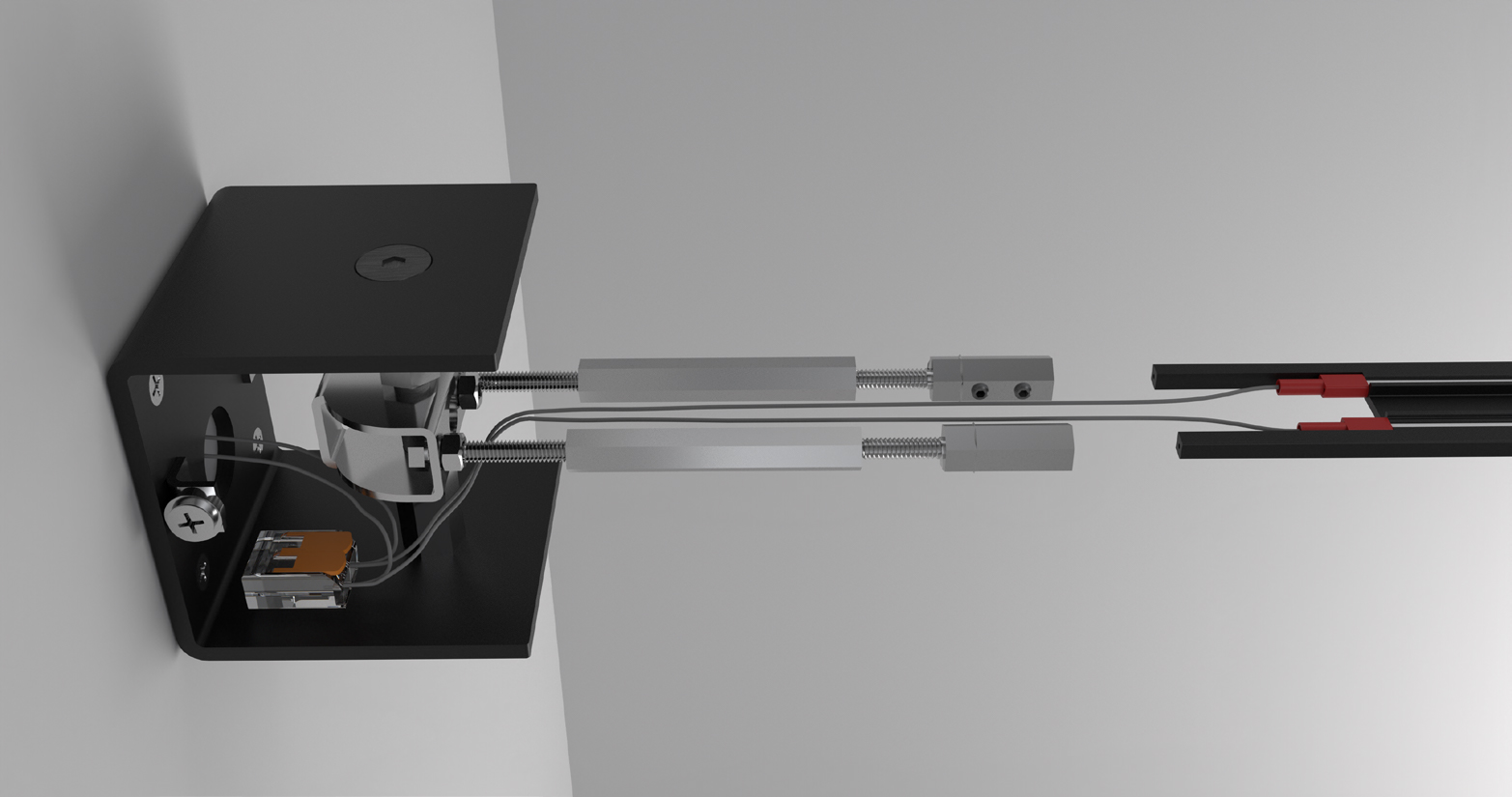

The cable, properly prepared, is inserted into the tensioning devices.

The electrical conductors are connected to the power supply through the harness with connectors included in the tensioner assembly package.

The connection of the LED strip remains separate for indipendent light.

A magnetic cover and a final finishing cover are fixed at the end of the tensioning of the cable and of the connections.

HOW TO CHOOSE THE POWER SUPPLY

Use the diagram below to help you select the power supply and any optional accessories according to the type of light source chosen and the type of light control desired.

NOT DIMMABLE 0-10V DALI DALI / 0-10V CASAMBI PUSH BUTTON DSI / CORRIDOR FUNCTION
Remote power supply Strip LED 40205 4020 + 40207 4020 + 40207 4020 + 40207 40205 + 40206 40205 + 40206
Visible power supply White Strip LED 40306 40307 40307 40307 40308 40308
Visible power supply Black Strip LED 40506 40507 40507 40507 40508 40508
Remote power supply ZOOM 40200 4020 + 40202 40201 4020 + 40203 40201 + 40204 40201 + 40204 40201
Visible power supply White ZOOM 40306 40310 40309 40311 40312 40312 40309
Visible power supply Black ZOOM 40506 40510 40509 40511 40512 40512 40509
Remote power supply MINI 40205
Visible power supply White MINI 40306
Visible power supply Black MINI 40506
For Strip LED and MINI, 40200 can be used in alternative to 40205.

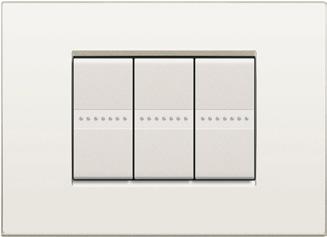

Casambi is based on Bluetooth Low Energy [BLE] technology, the state of the art in terms of wireless systems. Thanks to LEVEL system and CASAMBI you can design and easily handle any setting you wish. You can use the 25160 remote control, your smartphone, tablet, CASAMBI compatible wall switches or any wall Push switch that is combined to the CASAMBI device.

Letroh Level Alimentatore remoto
Alimentatore remoto Letroh level
Power supply Letroh level
Power supply Letroh level
Remote power supply
Remote power supply
Visible power supply
Visible power supply

For ZOOM / MINI / STRIP
Not dimmable
40200 150W

For Strip LED / MINI
Not dimmable
40205 150W

For ZOOM / MINI / STRIP
Not dimmable
40306 White 150W
40506 Black 150W

Only for Strip LED
Dimmable
[0-10V, 1-10V, Push, DALI]
40307 White 150W
40507 Black 150W

Only for Strip LED
Dimmable
[CASAMBI]
40308 White 150W
40508 Black 150W

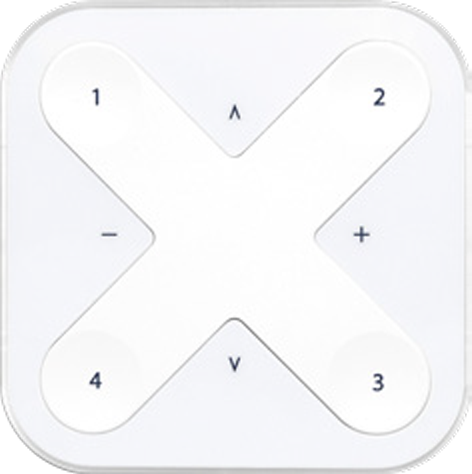

25160 CASAMBI remote control

Only for ZOOM
Dimmable
[Push, DSI, Corridorfunc., DALI]
40309 White 150W
40509 Black 150W

Only for ZOOM
Dimmable
[0-10V]
40310 White 150W
40510 Black 150W

Only for ZOOM
Dimmable
[0-10V, DALI]
40311 White 150W
40511 Black 150W

Only for ZOOM
Dimmable
[CASAMBI]
40312 White 150W
40512 Black 150W
25160 CASAMBI remote control

Alimentatore remoto level letroh
alimentatore remoto level letroh 2

Power supply with constant voltage output. The 40201, 40202, 40203 and 40204 devices must be used only with the ZOOM source. Do not use with MINI source and Strip LED.

Power supply with constant voltage output. Not dimmable. The 40206 and 40207 devices allow you to dim the LED strip. Do not use with ZOOM and MINI sources.

Power supply with constant voltage output.

Power supply with constant voltage output.

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

Kg 0.37

Kg 0.29

Kg 1.28

Kg 1.28

Letroh Level Alimentatore remoto
Remote power supply

For ZOOM / MINI / STRIP
Not dimmable
40200 150W

Alimentatore remoto level letroh

Power supply with constant voltage output. The 40201, 40202, 40203 and 40204 devices must be used only with the ZOOM source. Do not use with MINI source and Strip LED.

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

Download

Kg 0.37

Alimentatore remoto Letroh level
Remote power supply

For Strip LED / MINI
Not dimmable
40205 150W

alimentatore remoto level letroh 2

Power supply with constant voltage output. Not dimmable. The 40206 and 40207 devices allow you to dim the LED strip. Do not use with ZOOM and MINI sources.

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

Download

Kg 0.29

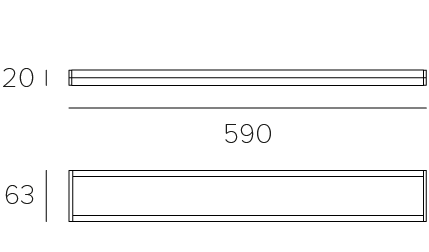

Power supply Letroh level
Visible power supply

For ZOOM / MINI / STRIP
Not dimmable
40306 White 150W
40506 Black 150W

Only for Strip LED
Dimmable
[0-10V, 1-10V, Push, DALI]
40307 White 150W
40507 Black 150W

Only for Strip LED
Dimmable
[CASAMBI]
40308 White 150W
40508 Black 150W
25160 CASAMBI remote control

Power supply with constant voltage output.

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

Download

Kg 1.28

Power supply Letroh level
Visible power supply

Only for ZOOM
Dimmable
[Push, DSI, Corridorfunc., DALI]
40309 White 150W
40509 Black 150W

Only for ZOOM
Dimmable
[0-10V]
40310 White 150W
40510 Black 150W

Only for ZOOM
Dimmable
[0-10V, DALI]
40311 White 150W
40511 Black 150W

Only for ZOOM
Dimmable
[CASAMBI]
40312 White 150W
40512 Black 150W
25160 CASAMBI remote control

Power supply with constant voltage output.

INPUT 220/240V AC 50/60Hz
OUTPUT 48V – 150W

Download

Kg 1.28
