ZOOM
LEVEL is a range of spots. Aluminum structure and heat sink. The integrated adjustable optic allows endless beams from 12° to 46°.
ZOOM with its rotating zoom optic [patent pending] enabling an infinitely adjustable beam from 12 to 46 degrees. The unique hybrid optical technology enables an adjustable beam which allows the creation of countless light effects with extreme simplicity: all you need is to turn the outer ring with your hand until you get the desired light effect.
ZOOM is suitable for a wide range of applications, including retail, showrooms, museums, and theatres. ZOOM integrates the Bridgelux HD LED Array for the best uniform high quality illumination, for a clean white light and high quality and true reproduction of colours
Recessed spot
Adjustable recessed spot
Adjustable ceiling spot
Ceiling spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43330 White
43530 Black
3000K CRI 97 – 878 / 1068 lm
43331 White
43531 Black
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43340 White
43540 Black
3000K CRI 97 – 878 / 1068 lm
43341 White
43541 Black
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43300 White
43500 Black
3000K CRI 97 – 878 / 1068 lm
43301 White
43501 Black
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43320 White
43520 Black
3000K CRI 97 – 878 / 1068 lm
43321 White
43521 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Optional
25160 CASAMBI Remote control
Optional
25160 CASAMBI Remote control
Optional
25160 CASAMBI Remote control
Adjustable optic 12° – 46°
Adjustable optic 12° – 46°
Adjustable optic 12° – 46°
Adjustable optic 12° – 46°
Kg 0.38
Kg 0.38
Kg 0.38
Kg 0.35
Recessed spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43330 White
43530 Black
3000K CRI 97 – 878 / 1068 lm
43331 White
43531 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Adjustable optic 12° – 46°
Download
Kg 0.38
Adjustable recessed spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43340 White
43540 Black
3000K CRI 97 – 878 / 1068 lm
43341 White
43541 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Adjustable optic 12° – 46°
Download
Kg 0.38

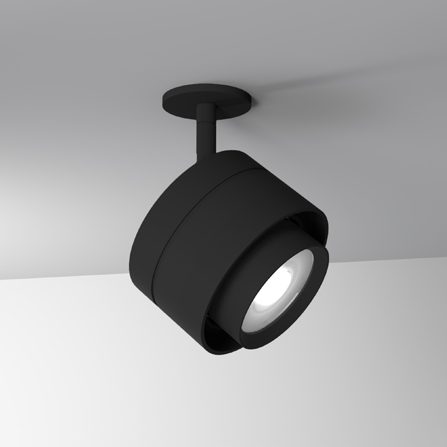

Adjustable ceiling spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43300 White
43500 Black
3000K CRI 97 – 878 / 1068 lm
43301 White
43501 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Adjustable optic 12° – 46°
Download
Kg 0.38
Ceiling spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43320 White
43520 Black
3000K CRI 97 – 878 / 1068 lm
43321 White
43521 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Adjustable optic 12° – 46°
Download
Kg 0.35
Suspension spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43310 White
43510 Black
3000K CRI 97 – 878 / 1068 lm
43311 White
43511 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Adjustable cable.
Adjustable optic 12° – 46°
Kg 0.47
ZOOM with its rotating zoom optic [patent pending] allows endless beams from 12 to 46 degrees. Different shade LEDs [2700K, 3000K]. CRI 97.
For contract supplies the ZOOM series can be customized with LEDs of different gradation [K] and different color rendering index [CRI].
Suspension spot
1 x 13W – 350mA
2700K CRI 97 – 831 / 1010 lm
43310 White
43510 Black
3000K CRI 97 – 878 / 1068 lm
43311 White
43511 Black
Power supply to be added
25150 350 mA – 13W Dimmable cut phase
25156 350 mA – 13W CASAMBI
25153 350 mA – 13W DALI 1 – 2, Push, 0-10V, 1-10V
Optional
25160 CASAMBI Remote control
Adjustable cable.
Adjustable optic 12° – 46°
Download
Kg 0.47
ZOOM with its rotating zoom optic [patent pending] allows endless beams from 12 to 46 degrees. Different shade LEDs [2700K, 3000K]. CRI 97.
For contract supplies the ZOOM series can be customized with LEDs of different gradation [K] and different color rendering index [CRI].
