BOB is a LED spot with double joint that allows an inclination of 90° on the horizontal plane and a rotation of 360° around the vertical axis. Aluminum structure and heat sink. Easy replacement of secondary lens.
BOB

Round and clear.

In the LED version, BOB is available with an adapter compatible with most of three-phase electrified tracks.

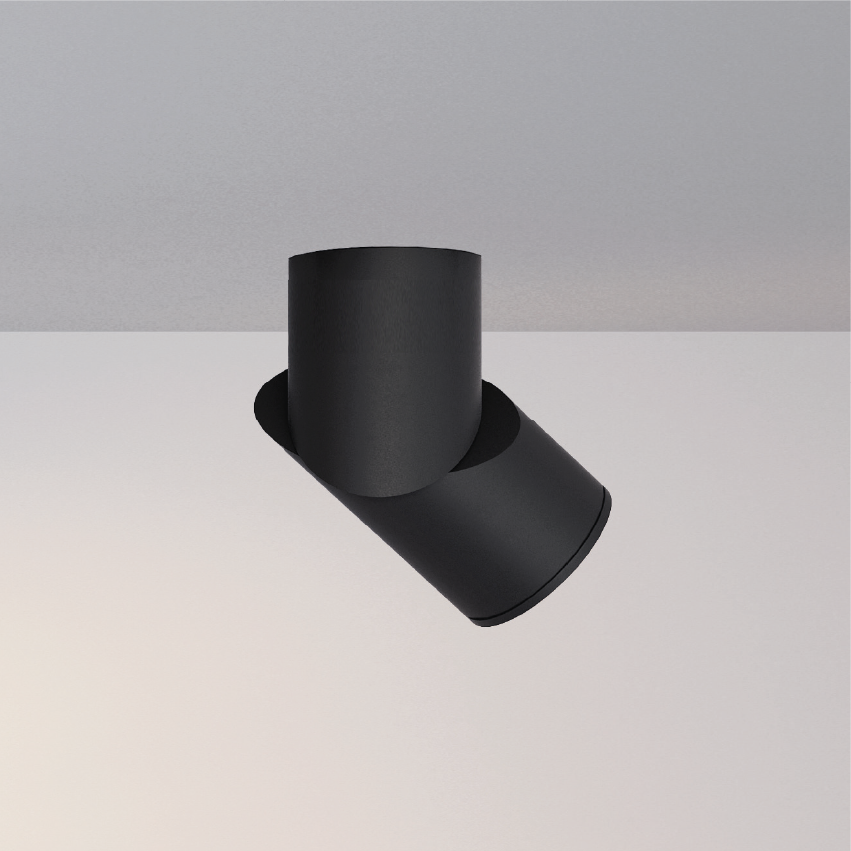

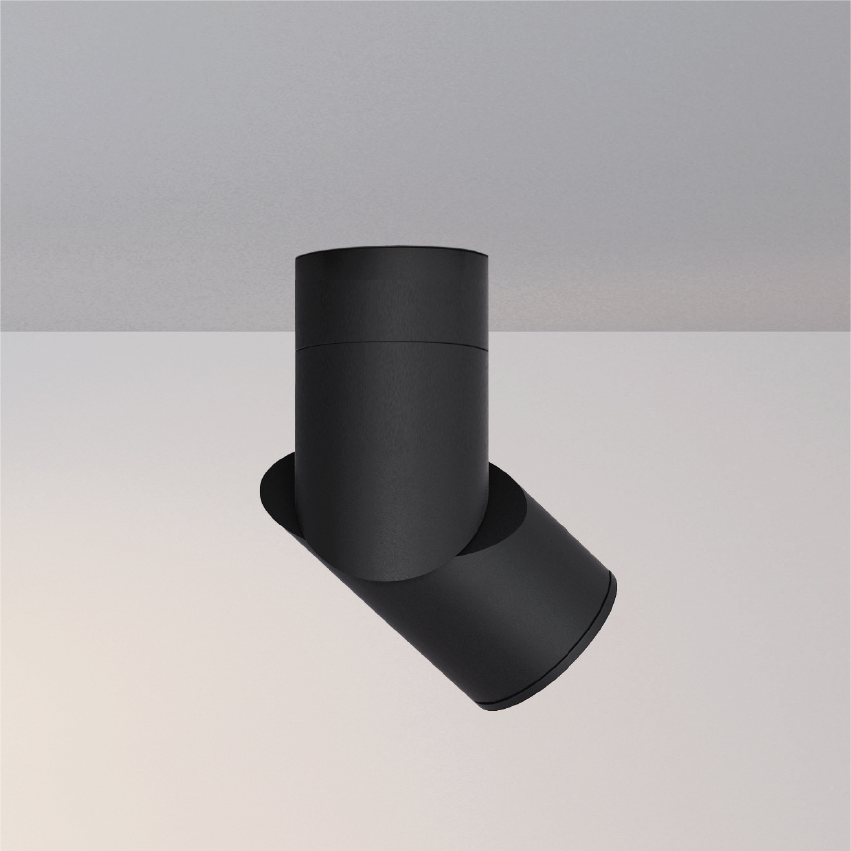

GU10 recessed spot

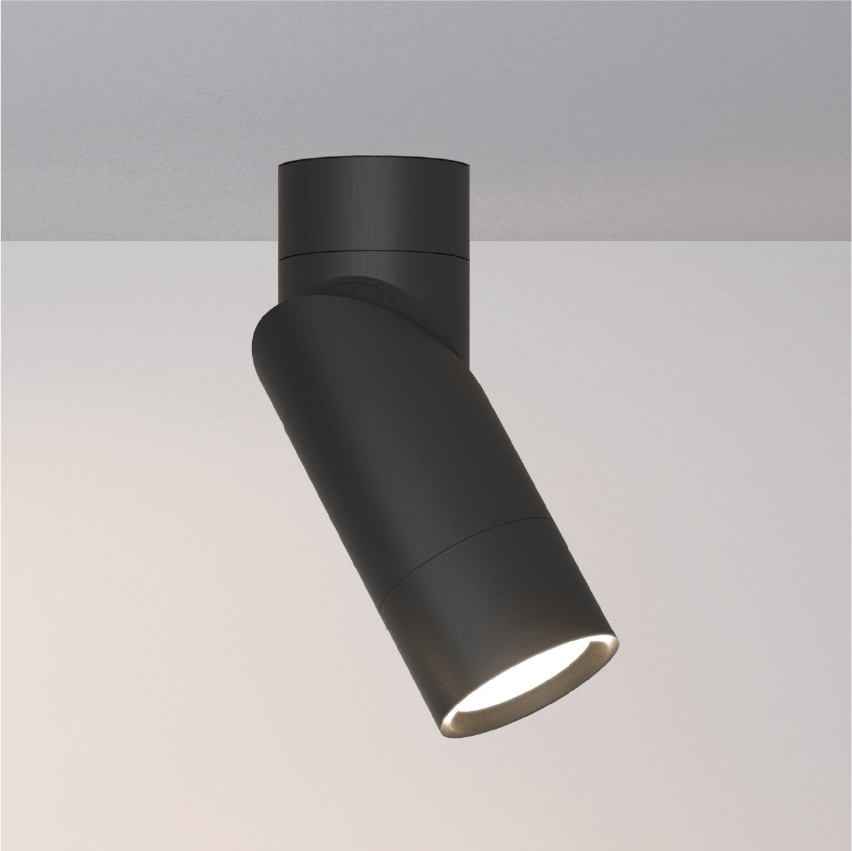

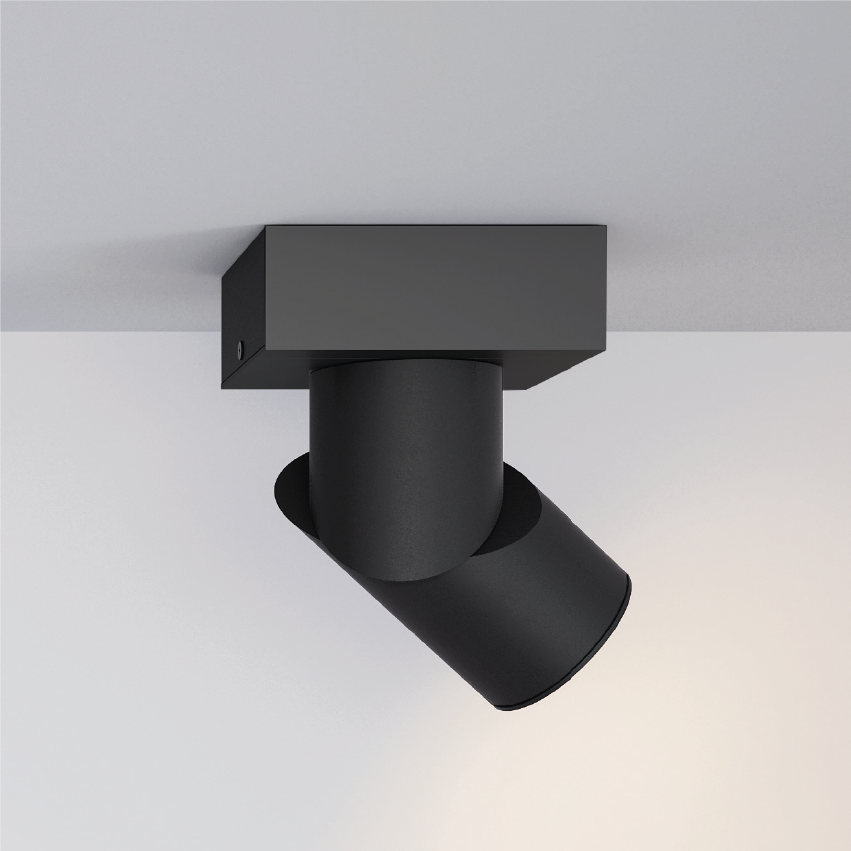

GU10 wall/ceiling spot

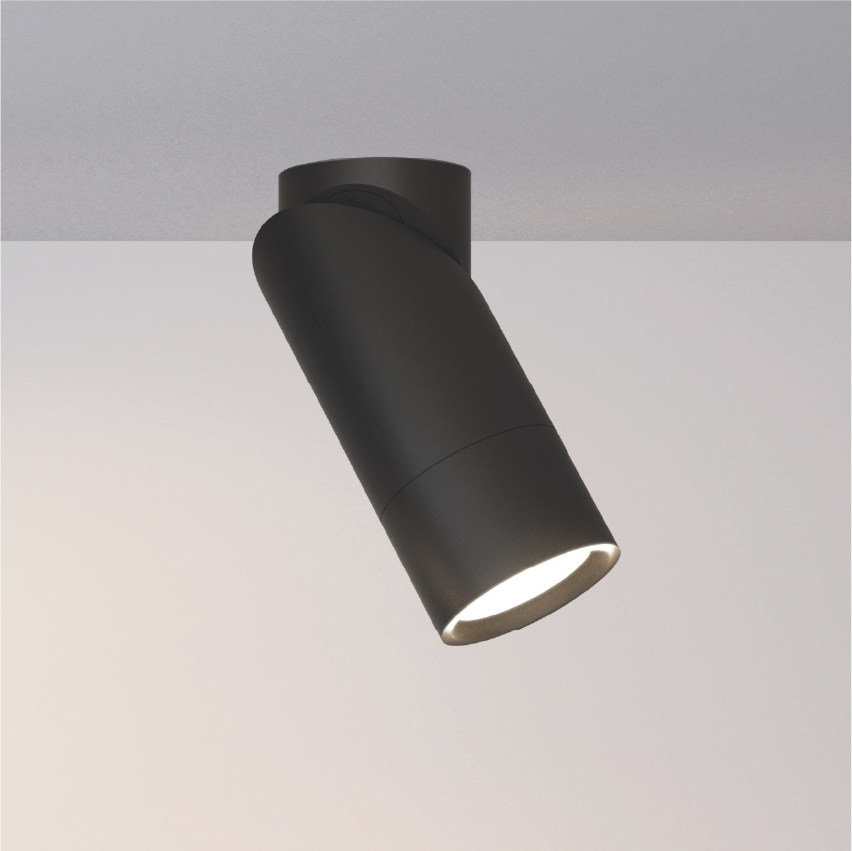

GU10 wall/ceiling spot

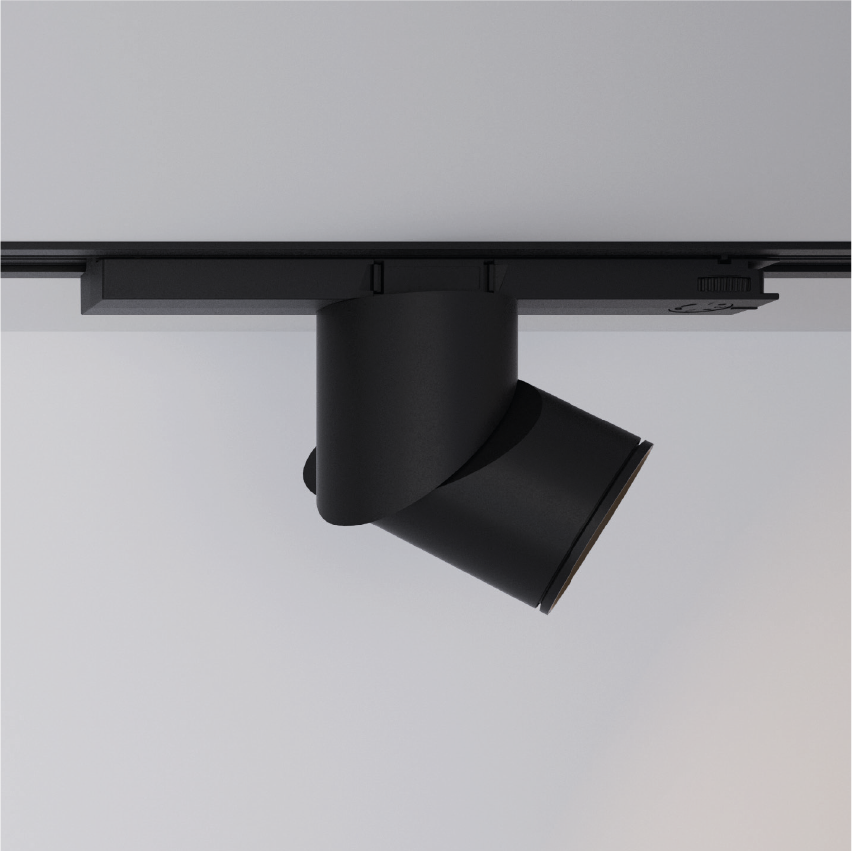

Three-phase spot
1 LED x 13/20W
3000K CRI 90 – 1150 / 1900 lm
52371 White
52571 Black
4000K CRI 90 – 1200 / 2000 lm
52372 White
52572 Black
1 LED x 13/20W
3000K CRI 90 – 1150 / 1900 lm
52371 White
52571 Black
4000K CRI 90 – 1200 / 2000 lm
52372 White
52572 Black
1 LED x 20W – 500 mA
3000K CRI 90 – 1900 lm
54381 White
54581 Black
4000K CRI 90 – 2000 lm
54382 White
54582 Black
1 LED x 20W – 500mA DALI 2
3000K CRI 90 / 1900 lm
57381 White
57581 Black
4000K CRI 90 – 2000 lm
57382 White
57582 Black
1 LED x 20W – 500mA Not dimmable
3000K CRI 90 – 1900 lm
58381 White
58581 Black
4000K CRI 90 – 2000 lm
58382 White
58582 NBlack
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
Power supply to be added | |||
25150 | 350mA – 13W Dimmable cut phase | ||
25152 | 500mA – 20W Dimmable cut phase | ||
25156 | 350/500mA – 13/20W CASAMBI | ||
25153 | 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V |
Optional
25160 CASAMBI Remote control
Power supply to be added | |||
25150 | 350mA – 13W Dimmable cut phase | ||
25152 | 500mA – 20W Dimmable cut phase | ||
25156 | 350/500mA – 13/20W CASAMBI | ||
25153 | 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V |
Optional
25160 CASAMBI Remote control
Power-supply included
Dimmable DALI 2
Power-supply included
Dimmerabile DALI 2





Kg 0.74

Kg 0.76

Kg 0.82

Kg 0.90

GU10 recessed spot
1 LED x 13/20W
3000K CRI 90 – 1150 / 1900 lm
52371 White
52571 Black
4000K CRI 90 – 1200 / 2000 lm
52372 White
52572 Black
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
Power supply to be added | |||
25150 | 350mA – 13W Dimmable cut phase | ||
25152 | 500mA – 20W Dimmable cut phase | ||
25156 | 350/500mA – 13/20W CASAMBI | ||
25153 | 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V |
Optional
25160 CASAMBI Remote control

Download

Kg 0.74

GU10 wall/ceiling spot
1 LED x 13/20W
3000K CRI 90 – 1150 / 1900 lm
52371 White
52571 Black
4000K CRI 90 – 1200 / 2000 lm
52372 White
52572 Black
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
Power supply to be added | |||
25150 | 350mA – 13W Dimmable cut phase | ||
25152 | 500mA – 20W Dimmable cut phase | ||
25156 | 350/500mA – 13/20W CASAMBI | ||
25153 | 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V |
Optional
25160 CASAMBI Remote control

Download

Kg 0.76

GU10 wall/ceiling spot
1 LED x 20W – 500 mA
3000K CRI 90 – 1900 lm
54381 White
54581 Black
4000K CRI 90 – 2000 lm
54382 White
54582 Black
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
Power-supply included
Dimmable DALI 2

Download

Kg 0.82

Three-phase spot
1 LED x 20W – 500mA DALI 2
3000K CRI 90 / 1900 lm
57381 White
57581 Black
4000K CRI 90 – 2000 lm
57382 White
57582 Black
1 LED x 20W – 500mA Not dimmable
3000K CRI 90 – 1900 lm
58381 White
58581 Black
4000K CRI 90 – 2000 lm
58382 White
58582 NBlack
To be completed with lenses
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher
Power-supply included
Dimmerabile DALI 2

Download

Kg 0.90
Optics: 30°, 40°, 60°, oval, rectangular, Wallwasher. Different shade LEDs [3000K, 4000K]. Available in the CRI 90.


Optics: 30°, 40°, 60°, oval, rectangular, Wallwasher. Different shade LEDs [3000K, 4000K]. Available in the CRI 90.




GU10 Recessed Spot
GU10 Wall/Ceiling Spot
230V – GU10 – MAX 10W LED
54390 White
54590 Black
230V – GU10 – MAX 10W LED
54390 White
54590 Black



Kg 0.80

Kg 0.82

GU10 Recessed Spot
230V – GU10 – MAX 10W LED
54390 White
54590 Black

Download

Kg 0.80

GU10 Wall/Ceiling Spot
230V – GU10 – MAX 10W LED
54390 White
54590 Black

Download

Kg 0.82
