POWER SUPPLY

VIAVAI allows the compatibility of its light sources with different types of dimming.

The track includes, in combination with the 10A conductors, the BUS line for direct control of the sources (with the exception of LED boards).

Maximum compatibility with different dimming systems: 0-10V, 1-10V, Push, potentiometer, CUT PHASE, DALI 1, DALI 2, Casambi, Amazon Alexa, Google Home and Matter [Apple Home].

Combine the optocoupler when using the BUS line to control the sources.

VIAVAI allows the compatibility of its light sources with different types of dimming.

The track includes, in combination with the 10A conductors, the BUS line for direct control of the sources (with the exception of LED boards).

Maximum compatibility with different dimming systems: 0-10V, 1-10V, Push, potentiometer, CUT PHASE, DALI 1, DALI 2, Casambi, Amazon Alexa, Google Home and Matter [Apple Home].

Combine the optocoupler when using the BUS line to control the sources.

Remote power supply
Dimmer – Mono PWM
Optoinsulate
Multi Input to DALI

Not dimmable

Per
VIAVAI LED BOARD – DARK PWM – SPOT PWM

For
VIAVAI DALI System

For
DARK light source
ONE BY ONE DALI 2 MASTER

40210 70W
40205 150W
40213 250W

[0-10V, 1-10V, Push, POT, DALI]40209 Dimmer

16018 7W / 48V

40217 Multi Input to DALI

Optional

For
VIAVAI 0-10V / 1-10 V System

25162 CASAMBI Dimmer
25160 CASAMBI Remote control

16032 7W / 48V

The Casambi 25162 device, combined with 40209, allows the installation to be controlled via Bluetooth.

40215 CUT-PHASE Dimmer
40216 DALI 2 Dimmer
40218 Amazon Alexa Google Home
40220 Matter [Apple Home]

Power supply with constant voltage output. Not dimmable.

Single-channel dimmer with PWM voltage output. Control inputs: isolated button, DALI, isolated boost [100K], passive 0-10V [not insulated], passive 1-10V [not insulated], DALI 2, CUT PHASE, Amazon Alexa, Google Home and Matter [Apple Home] assistants.

Used to convert a BUS DATA signal to a BUS DATA SELV signal.

MASTER DALI device for Viavai Dark ONE BY ONE light sources 67540-67541. Allows control of [broadcast] sources via 0-10V, 1-10V, PUSH, potentiometer.

40210 / 40205

40213

INPUT 220/240V AC 50/60 Hz OUTPUT 48V – 70/150/250 W

INPUT 48V DC
OUTPUT 48V DC

INPUT BUS DATA Max 4mA OUTPUT BUS DATA Max 250mA

INPUT 48V
INPUT BUS DALI 180mA

Download
Download
Download
Download

Kg 0.29

Kg 0,15

Kg 0.26

Kg 0.29

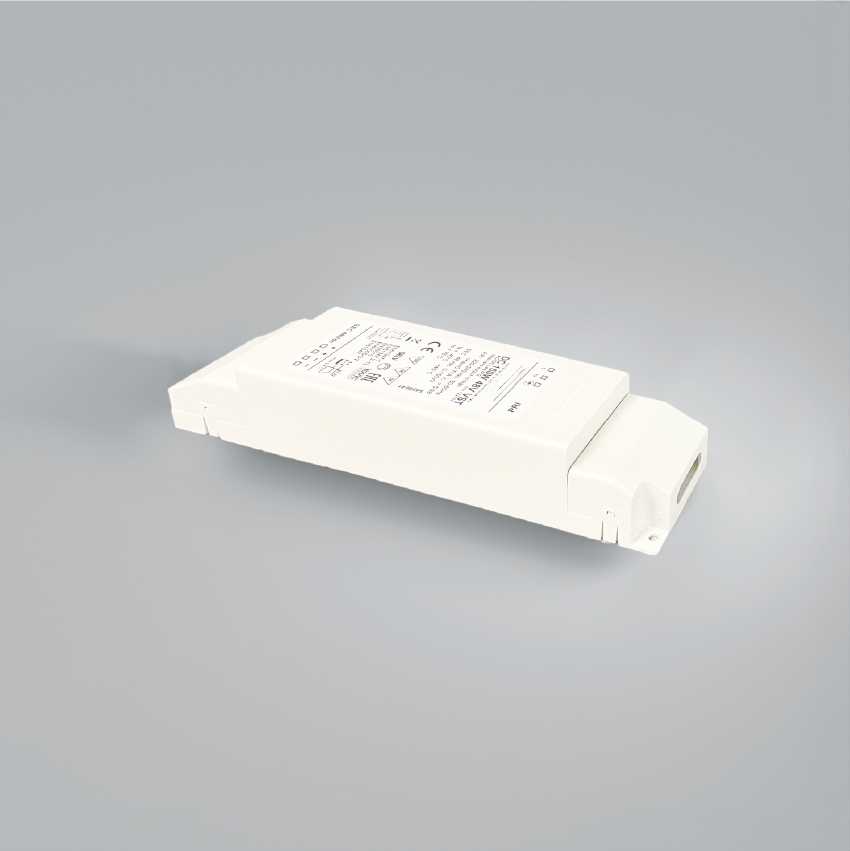

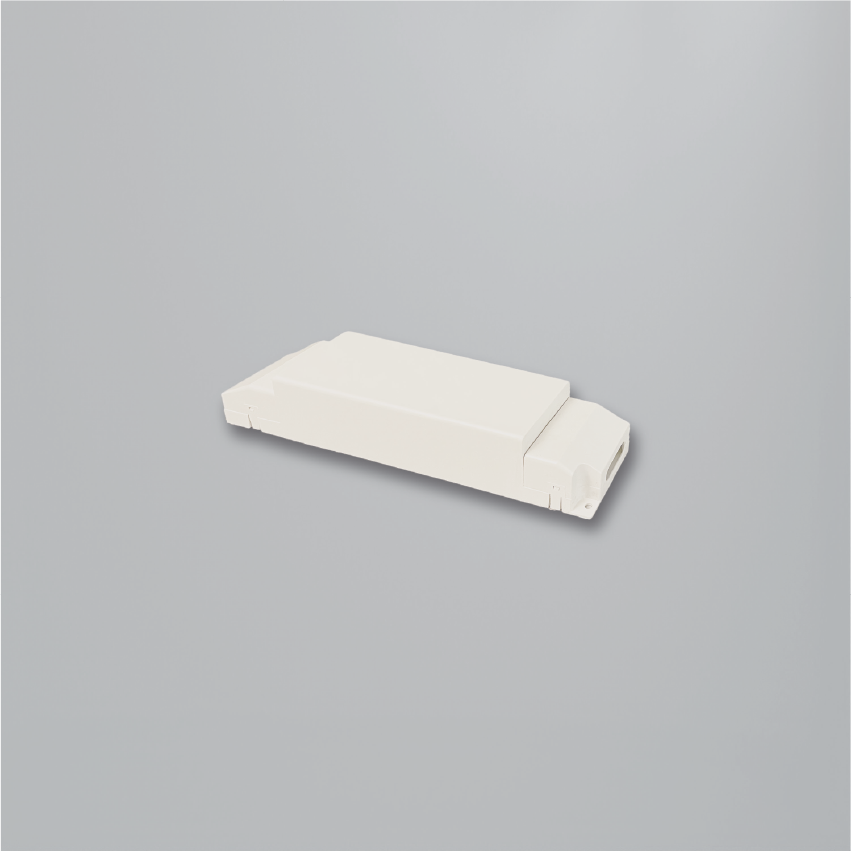

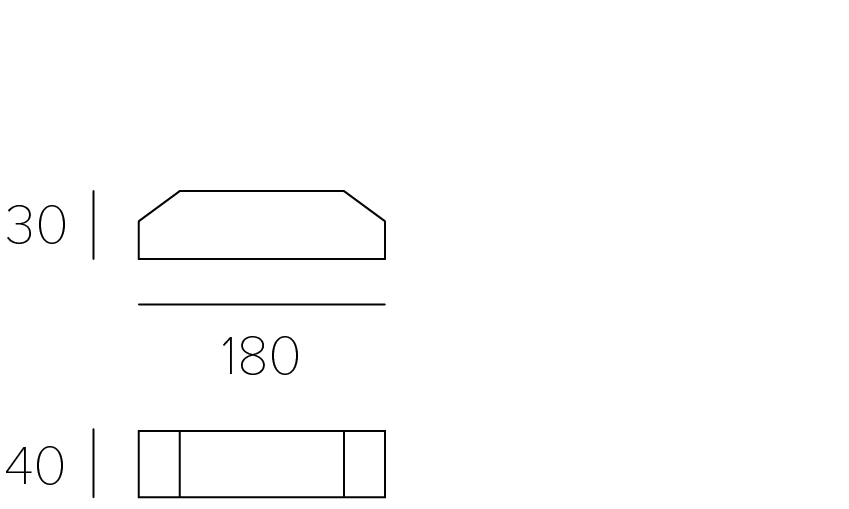

Remote power supply

Not dimmable

40210 70W
40205 150W

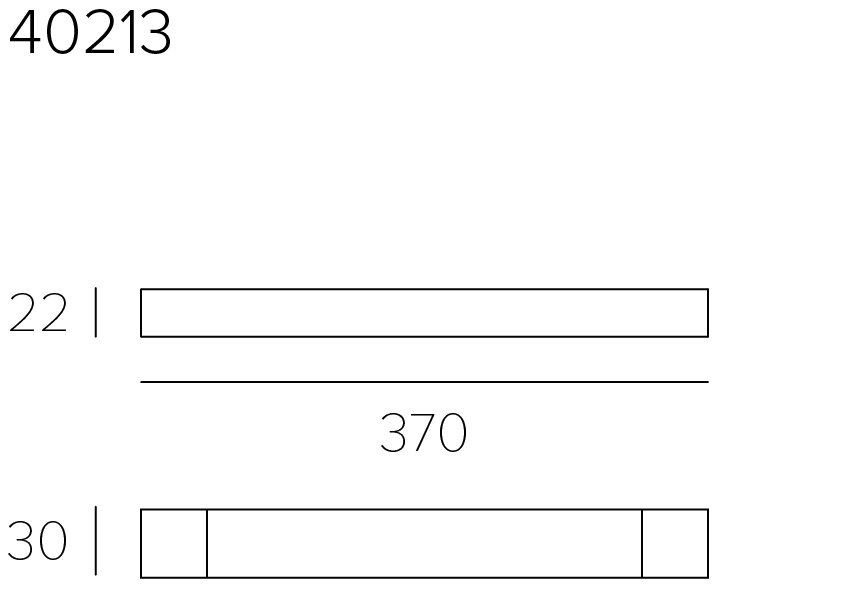

40213 250W

Power supply with constant voltage output. Not dimmable.

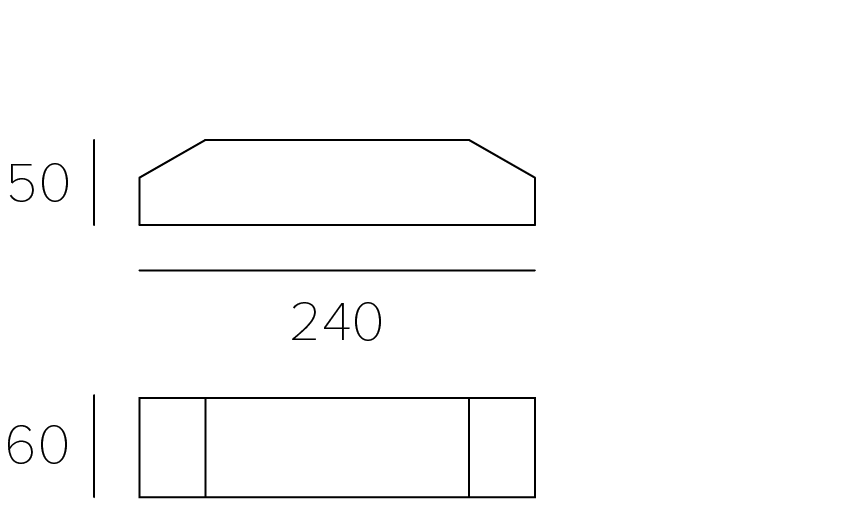

40210 / 40205

40213

INPUT 220/240V AC 50/60 Hz OUTPUT 48V – 70/150/250 W

Download

Kg 0.29

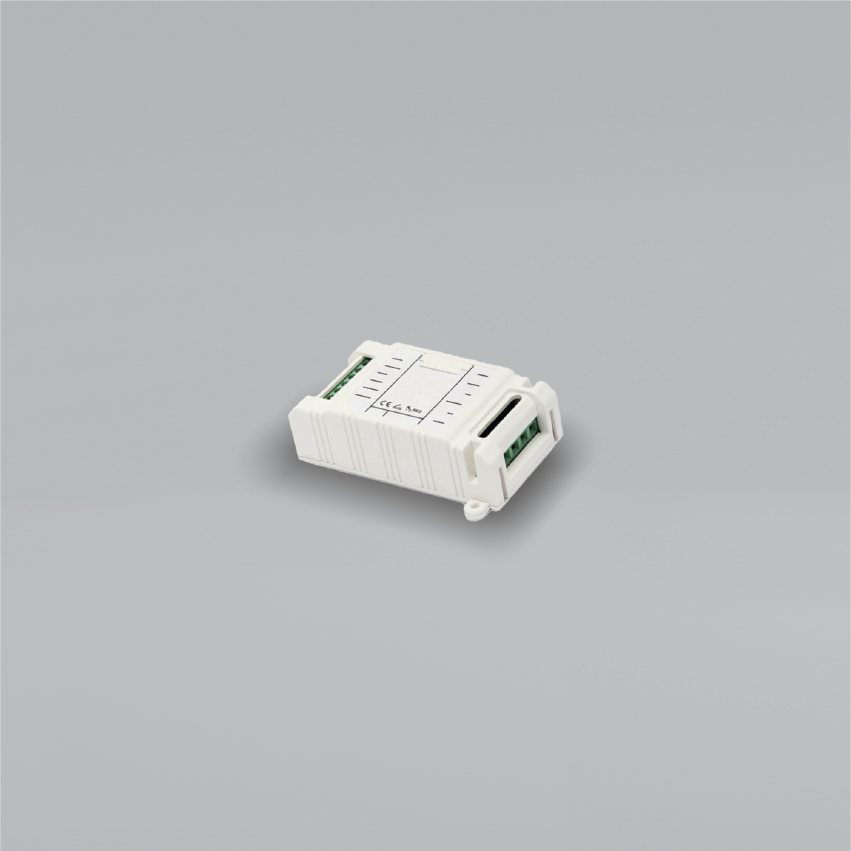

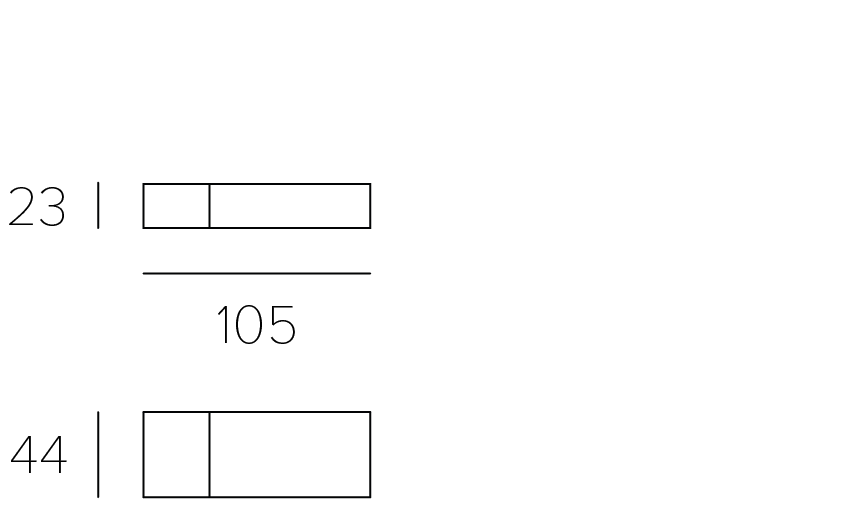

Dimmer – Mono PWM

Per
VIAVAI LED BOARD – DARK PWM – SPOT PWM

[0-10V, 1-10V, Push, POT, DALI]40209 Dimmer

Optional

25162 CASAMBI Dimmer
25160 CASAMBI Remote control

The Casambi 25162 device, combined with 40209, allows the installation to be controlled via Bluetooth.

40215 CUT-PHASE Dimmer
40216 DALI 2 Dimmer
40218 Amazon Alexa Google Home
40220 Matter [Apple Home]

Single-channel dimmer with PWM voltage output. Control inputs: isolated button, DALI, isolated boost [100K], passive 0-10V [not insulated], passive 1-10V [not insulated], DALI 2, CUT PHASE, Amazon Alexa, Google Home and Matter [Apple Home] assistants.

INPUT 48V DC
OUTPUT 48V DC

Download

Kg 0,15

Optoinsulate

For
VIAVAI DALI System

16018 7W / 48V

For
VIAVAI 0-10V / 1-10 V System

16032 7W / 48V

Used to convert a BUS DATA signal to a BUS DATA SELV signal.

INPUT BUS DATA Max 4mA OUTPUT BUS DATA Max 250mA

Download

Kg 0.26

Multi Input to DALI

For
DARK light source
ONE BY ONE DALI 2 MASTER

40217 Multi Input to DALI

MASTER DALI device for Viavai Dark ONE BY ONE light sources 67540-67541. Allows control of [broadcast] sources via 0-10V, 1-10V, PUSH, potentiometer.

INPUT 48V
INPUT BUS DALI 180mA

Download

Kg 0.29

CASAMBI Wi-Fi
Power supply box

For
VIAVAI DALI System

For
40210 / 40205 / 40213

40219 CASAMBI Voice

40318 White
40518 Black

DALI master controller for controlling up to 64 DALI lamps / 8 groups from the CASAMBI App [BLE] and/or through voice commands as it supports Amazon Alexa and Google Home [Wi-Fi] assistants.

Allows the housing of devices 40210 / 40205 / 40213.

INPUT 48V DC
OUTPUT BUS DALI

INPUT BUS DATA Max 4mA OUTPUT BUS DATA Max 250mA

Download
Download

Kg 0.30

Kg 1.00

CASAMBI Wi-Fi

For
VIAVAI DALI System

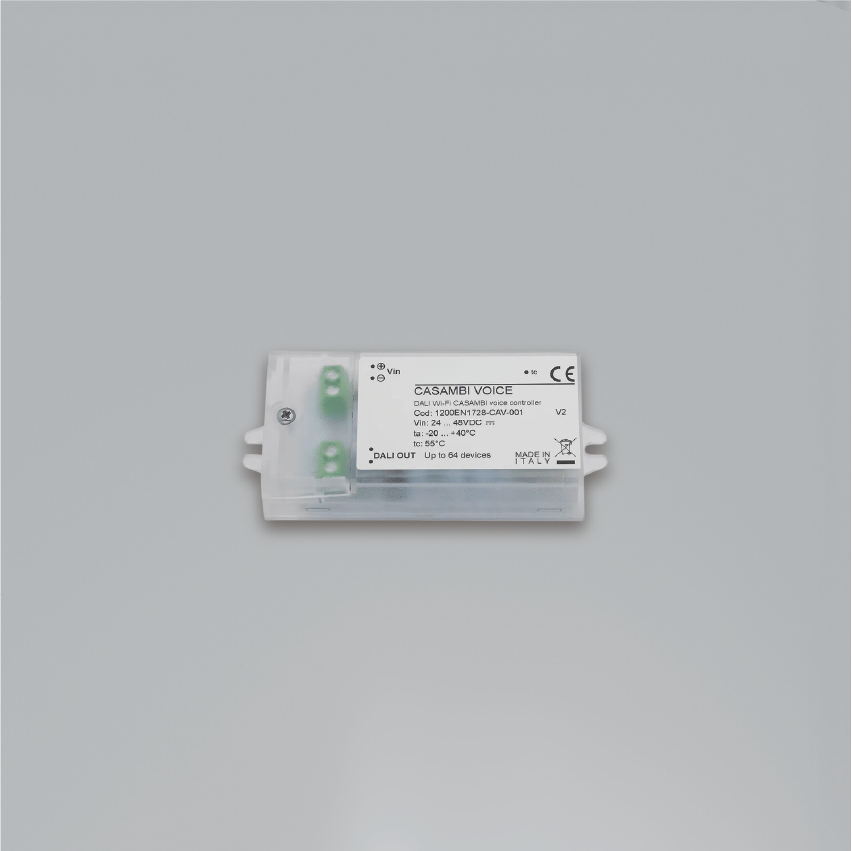

40219 CASAMBI Voice

DALI master controller for controlling up to 64 DALI lamps / 8 groups from the CASAMBI App [BLE] and/or through voice commands as it supports Amazon Alexa and Google Home [Wi-Fi] assistants.

INPUT 48V DC
OUTPUT BUS DALI

Download

Kg 0.30

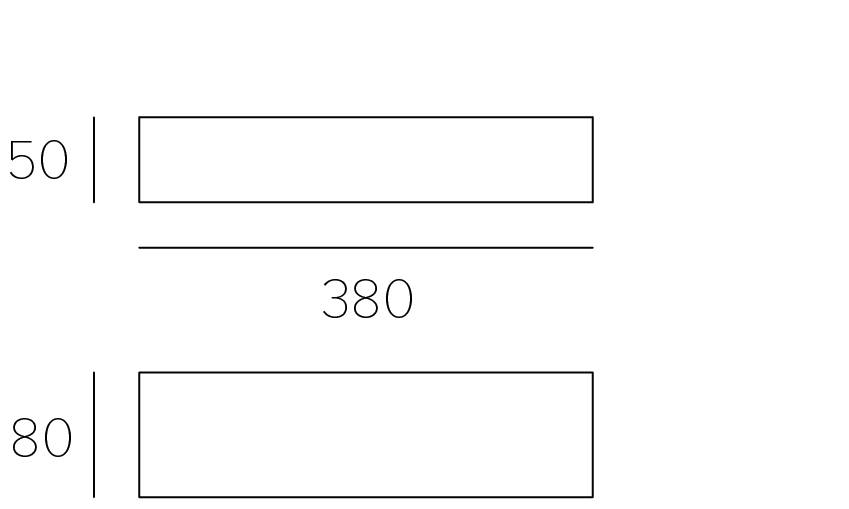

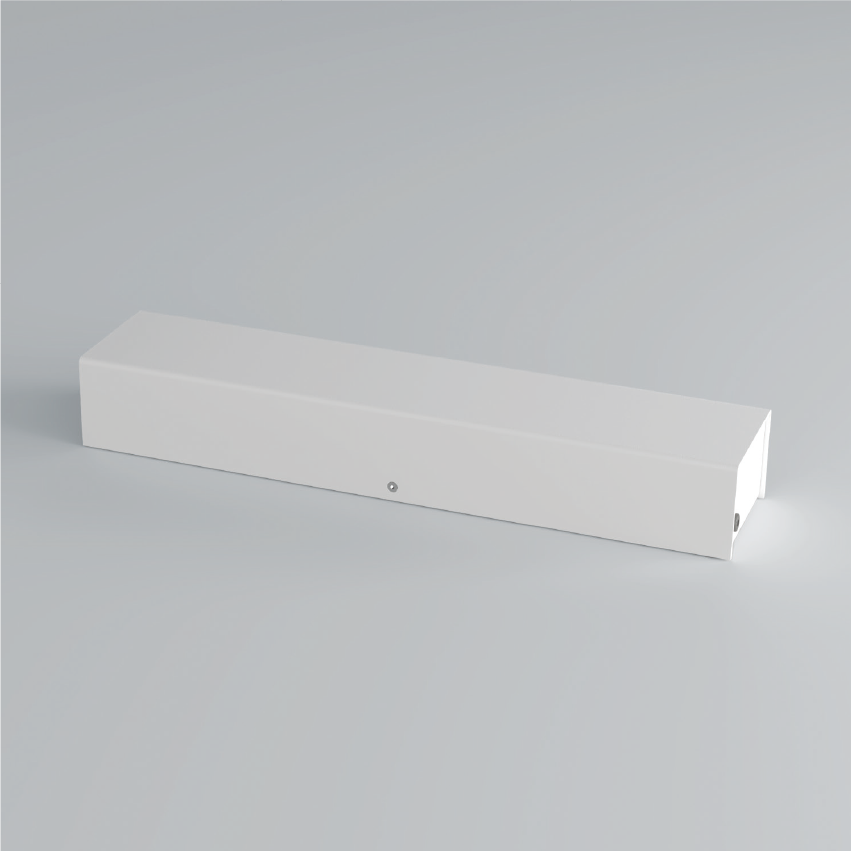

Power supply box

For
40210 / 40205 / 40213

40318 White
40518 Black

Allows the housing of devices 40210 / 40205 / 40213.

INPUT BUS DATA Max 4mA OUTPUT BUS DATA Max 250mA

Download

Kg 1.00
