VIAVAI / LED BOARD
Curved LED board
Dimmer LED boards
Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.
Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.
Single-channel dimmer for LED boards. Control inputs: PUSH, 0-10V, DALI. To be combined with 40210 / 40205 power supplies.
Dimmable
108 LED / 56 cm
9W – 48V – CRI 95
67000 2700K – 1080lm
67001 3000K – 1152lm
13W – 48V – CRI 95
67010 2700K – 1512lm
67011 3000K – 1656lm
17W – 48V – CRI 95
67020 2700K – 2016lm
67021 3000K – 2088lm
Dimmable
152 LED / 78 cm
12W – 48V – CRI 95
67100 2700K – 1440lm
67101 3000K – 1640lm
16W – 48V – CRI 95
67110 2700K – 2310lm
67111 3000K – 2460lm
24W – 48V – CRI 95
67120 2700K – 2880lm
67121 3000K – 3280lm
40215 Dimmer
Kg 0.30
Kg 0.20
Kg 0.15
Linear LED boarde

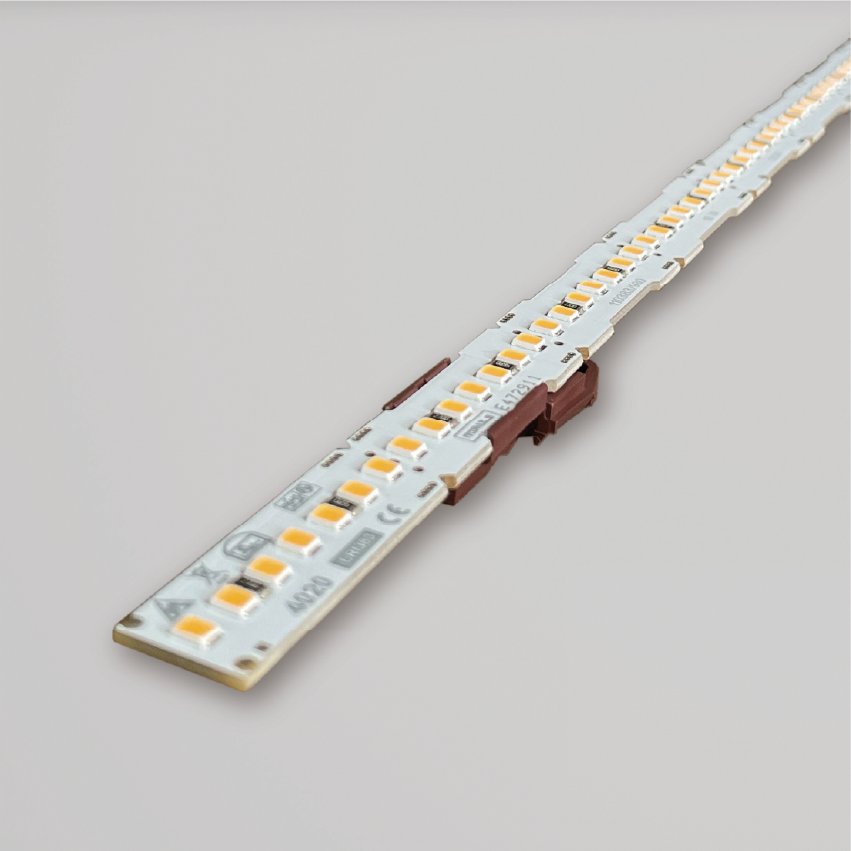

Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.
Dimmable
108 LED / 56 cm
9W – 48V – CRI 95
67000 2700K – 1080lm
67001 3000K – 1152lm
13W – 48V – CRI 95
67010 2700K – 1512lm
67011 3000K – 1656lm
17W – 48V – CRI 95
67020 2700K – 2016lm
67021 3000K – 2088lm
Download
Kg 0.30
Curved LED board

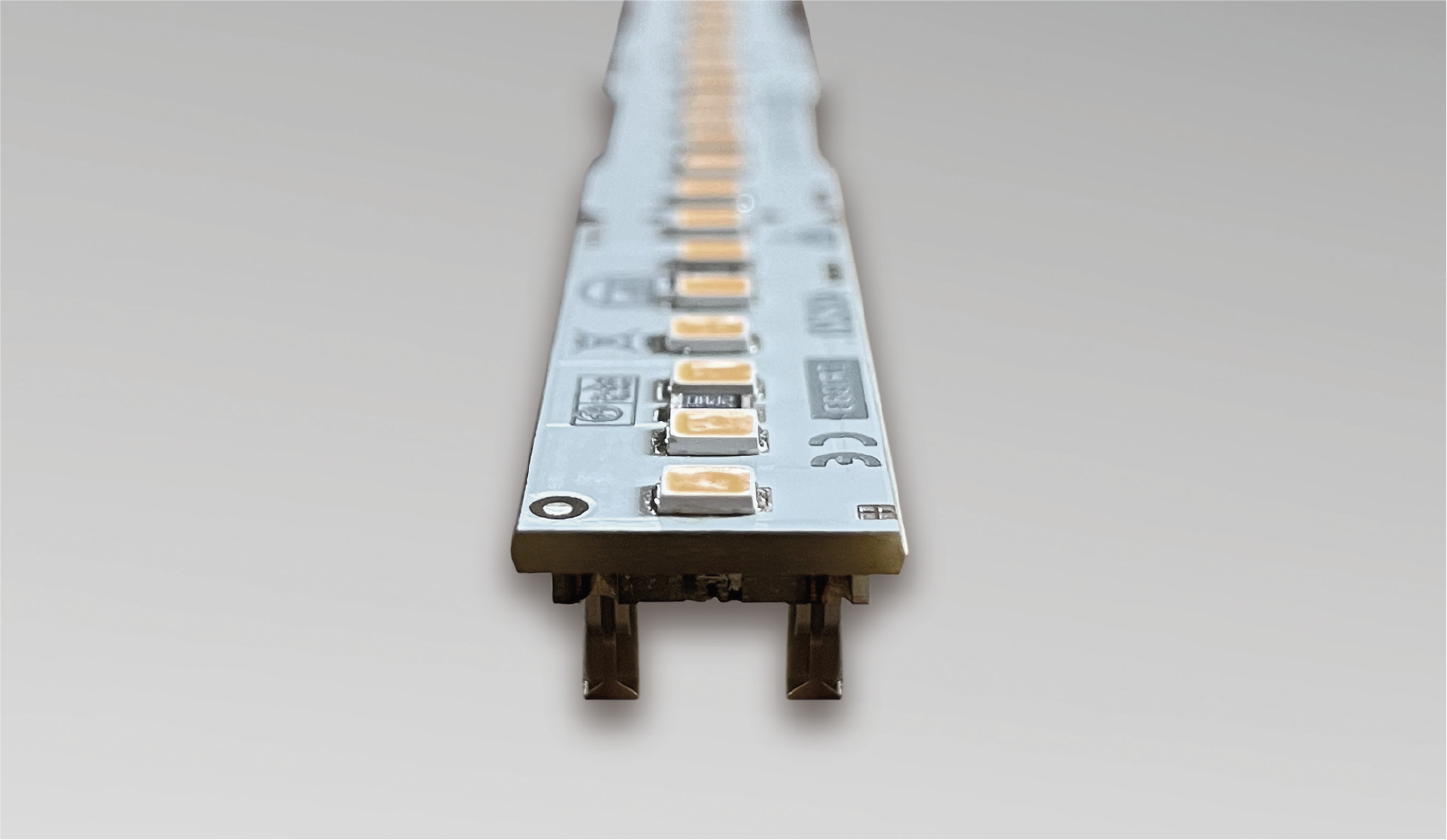

Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.
Dimmable
152 LED / 78 cm
12W – 48V – CRI 95
67100 2700K – 1440lm
67101 3000K – 1640lm
16W – 48V – CRI 95
67110 2700K – 2310lm
67111 3000K – 2460lm
24W – 48V – CRI 95
67120 2700K – 2880lm
67121 3000K – 3280lm
Download
Kg 0.20
Dimmer LED boards
Single-channel dimmer for LED boards. Control inputs: PUSH, 0-10V, DALI. To be combined with 40210 / 40205 power supplies.
40215 Dimmer
Download
Kg 0.15
Satin opal diffuser
Prismatic diffuser
Dark diffuser
Extruded polycarbonate, theyclose the electrified track at thelevel of the outermost profile. For mono and double emission tracks.
Extruded polycarbonate, theyclose the electrified track at thelevel of the outermost profile. For mono and double emission tracks.
Dark lighting system composed of optics and di!user.
16130 3 m
16131 3 m
16350 White
16550 Black
Light Transmission LT70
Unified Glare Rating not applicable.
Unified Glare Rating applicable.
Kg 0.30 / 100 cm
Kg 0.30 / 100 cm
Kg 0.26
Satin opal diffuser
Extruded polycarbonate, theyclose the electrified track at thelevel of the outermost profile. For mono and double emission tracks.
16130 3 m
Light Transmission LT70
Download
Kg 0.30 / 100 cm
Prismatic diffuser
Extruded polycarbonate, theyclose the electrified track at thelevel of the outermost profile. For mono and double emission tracks.
16131 3 m
Unified Glare Rating not applicable.
Download
Kg 0.30 / 100 cm
Dark diffuser
Dark lighting system composed of optics and di!user.
16350 White
16550 Black
Unified Glare Rating applicable.
Download
Kg 0.26
