SURFACE MINI is a range of spots characterized by ultra-compact dimensions. Painted aluminum structure and heat sink. Easy replacement of the secondary optics.
MINI
Recessed light source
Recessed Dark light source
Ceiling light source
Ceiling Dark light source
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44330 White
44530 Black
3000K CRI 97 – 770 lm
44331 White
44531 Black
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47330 White
47530 Black
3000K CRI 97 – 740 lm
47331 White
47531 Black
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44320 White
44520 Black
3000K CRI 97 – 770 lm
44321 White
44521 Black
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47350 White
47550 Black
3000K CRI 97 – 740 lm
47351 White
47551 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
20° lens and honeycomb included
To be completed with lenses
40102 20°
40103 40°
40104 60°
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Kg 0.15
Kg 0.17
Kg 0.14
Kg 0.16

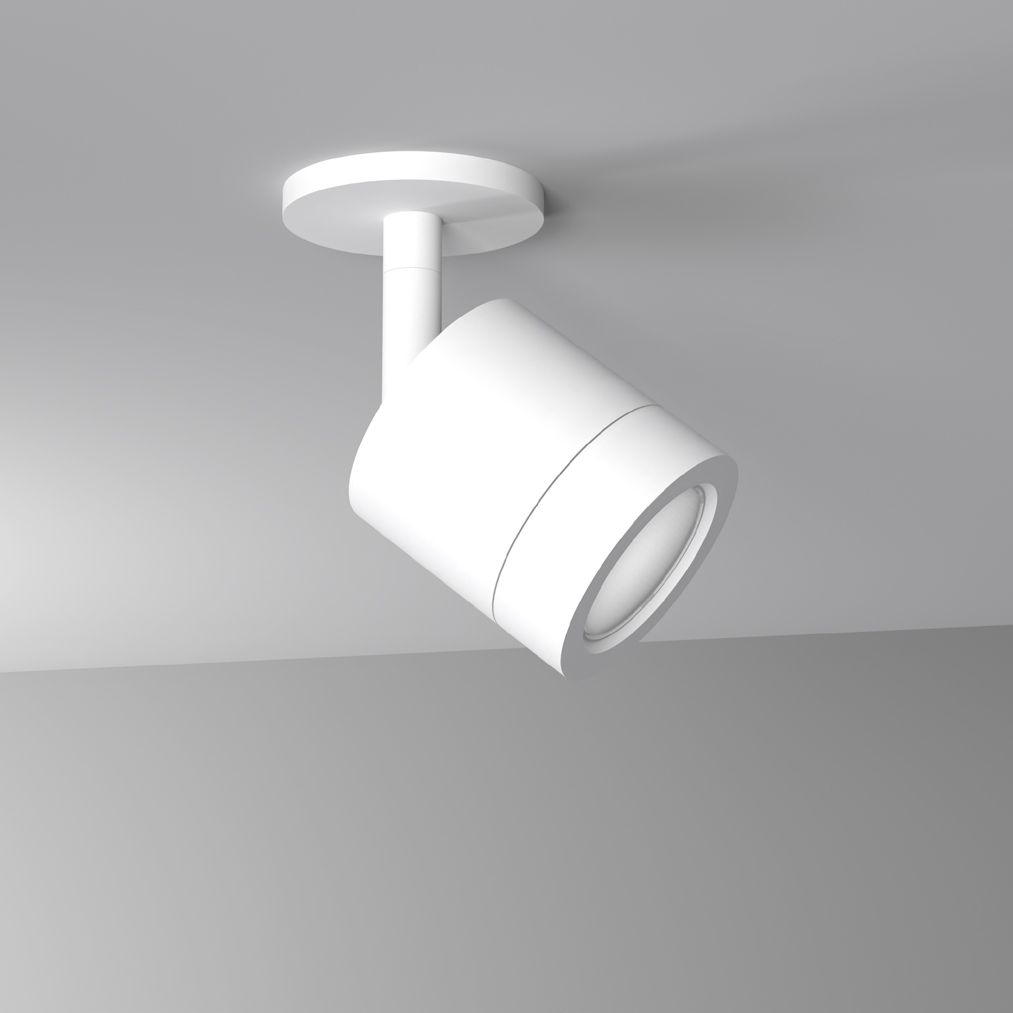

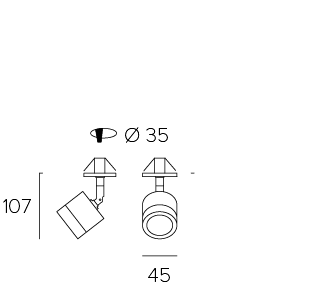

Recessed light source
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44330 White
44530 Black
3000K CRI 97 – 770 lm
44331 White
44531 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
The diameter of the hole is smaller than the dimensions of the power supplies.
Download
Kg 0.15

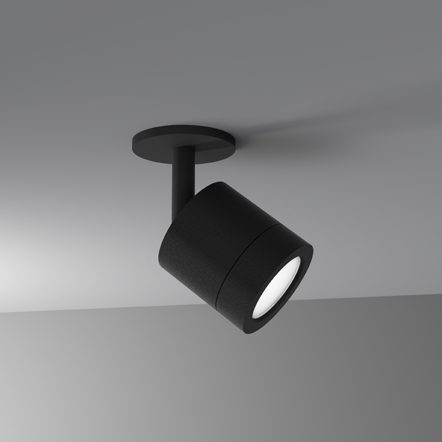

Recessed Dark light source
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47330 White
47530 Black
3000K CRI 97 – 740 lm
47331 White
47531 Black
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
The diameter of the hole is smaller than the dimensions of the power supplies.
Download
Kg 0.17

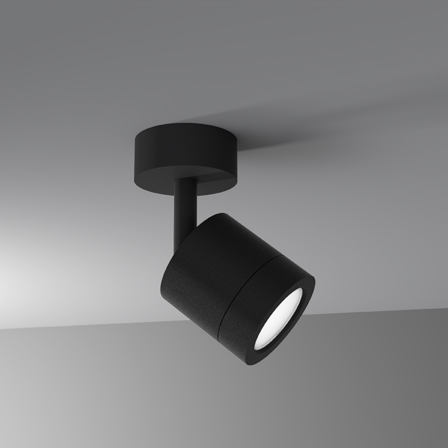

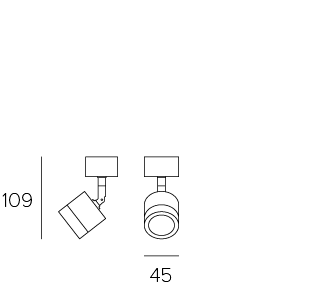

Ceiling light source
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44320 White
44520 Black
3000K CRI 97 – 770 lm
44321 White
44521 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.14
Ceiling Dark light source
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47350 White
47550 Black
3000K CRI 97 – 740 lm
47351 White
47551 Black
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.16

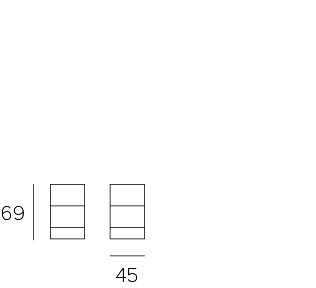

Ceiling light source
Ceiling Dark light source
Ceiling light source with diffuser
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44340 White
44540 Black
3000K CRI 97 – 770 lm
44341 White
44541 Black
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47340 White
47540 Black
3000K CRI 97 – 740 lm
47341 White
47541 Black
1 x 9W – 250mA
2700K CRI 97 – 708 lm
44350 White
44550 Black
3000K CRI 97 – 750 lm
44351 White
44551 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Kg 0.15
Kg 0.17
Kg 0.15

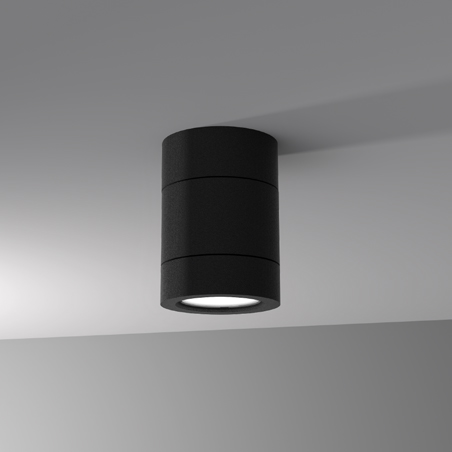

Ceiling light source
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44340 White
44540 Black
3000K CRI 97 – 770 lm
44341 White
44541 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.15
Ceiling Dark light source
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47340 White
47540 Black
3000K CRI 97 – 740 lm
47341 White
47541 Black
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.17

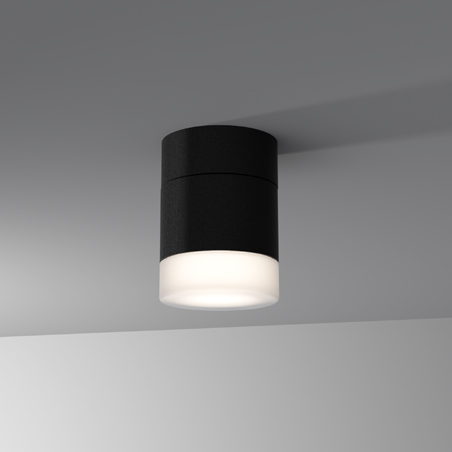

Ceiling light source with diffuser
1 x 9W – 250mA
2700K CRI 97 – 708 lm
44350 White
44550 Black
3000K CRI 97 – 750 lm
44351 White
44551 Black
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.15

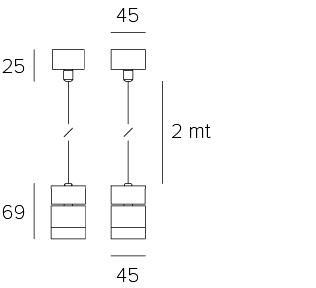

Suspension
Suspension Dark
Suspension with diffuser
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44360 White
44560 Black
3000K CRI 97 – 770 lm
44361 White
44561 Black
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47360 White
47560 Black
3000K CRI 97 – 740 lm
47361 White
47561 Black
1 x 9W – 250mA
2700K CRI 97 – 708 lm
44370 White
44570 Black
3000K CRI 97 – 750 lm
44371 White
44571 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Adjustable cable.
Adjustable cable.
Adjustable cable.
Kg 0.26
Kg 0.28
Kg 0.26
Suspension
1 x 9W – 250mA
2700K CRI 97 – 728 lm
44360 White
44560 Black
3000K CRI 97 – 770 lm
44361 White
44561 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Adjustable cable.
Download
Kg 0.26
Suspension Dark
1 x 9W – 250mA
2700K CRI 97 – 698 lm
47360 White
47560 Black
3000K CRI 97 – 740 lm
47361 White
47561 Black
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Adjustable cable.
Download
Kg 0.28
Suspension with diffuser
1 x 9W – 250mA
2700K CRI 97 – 708 lm
44370 White
44570 Black
3000K CRI 97 – 750 lm
44371 White
44571 Black
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Adjustable cable.
Download
Kg 0.26
Different shade LEDs [2700K, 3000K and others on request]. CRI 97. User interchangeable lens to change the ambient lighting [20°, 40°, 60°].
