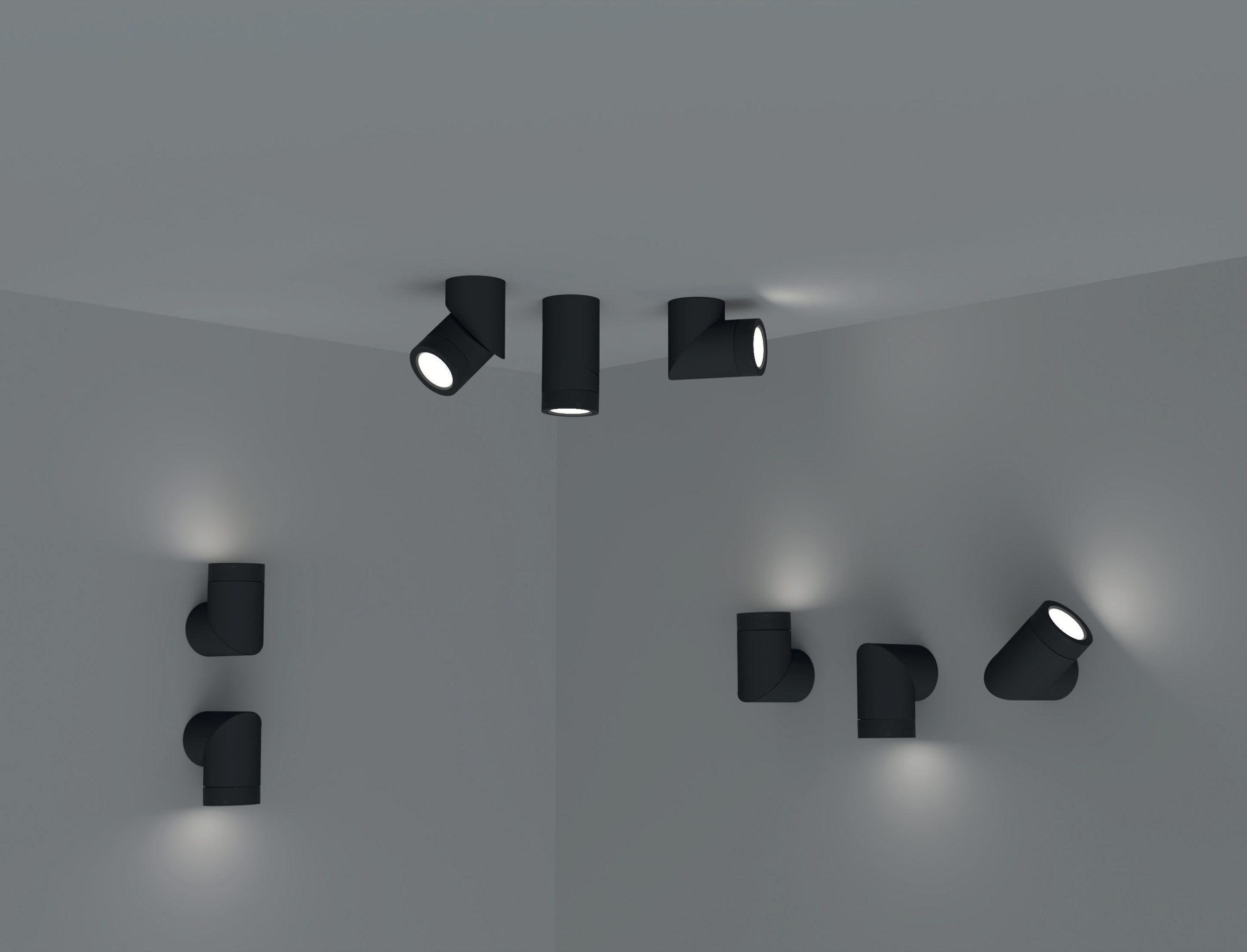

SURFACE BOBBY is a range of spots characterized by ultra-compact dimensions. Painted aluminum structure and heat sink. Easy replacement of the secondary optics.
BOBBY
Recessed light source
Recessed Dark light source
Ceiling light source
Ceiling Dark light source
1 x 9W – 250 mA
1 x 9W – 250 mA
1 x 9W – 250 mA
1 x 9W – 250 mA
2700K CRI 97 – 728 lm
59300 White
59500 Black
3000K CRI 97 – 770 lm
59301 White
59501 Black
2700K CRI 97 – 698 lm
59320 White
59520 Black
3000K CRI 97 – 740 lm
59321 White
59521 Black
2700K CRI 97 – 728 lm
59310 White
59510 Black
3000K CRI 97 – 770 lm
59311 White
59511 Black
2700K CRI 97 – 698 lm
59330 White
59530 Black
3000K CRI 97 – 740 lm
59331 White
59531 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
20° lens and honeycomb included
To be completed with lenses
40102 20°
40103 40°
40104 60°
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Kg 0.30
Kg 0.32
Kg 0.29
Kg 0.31

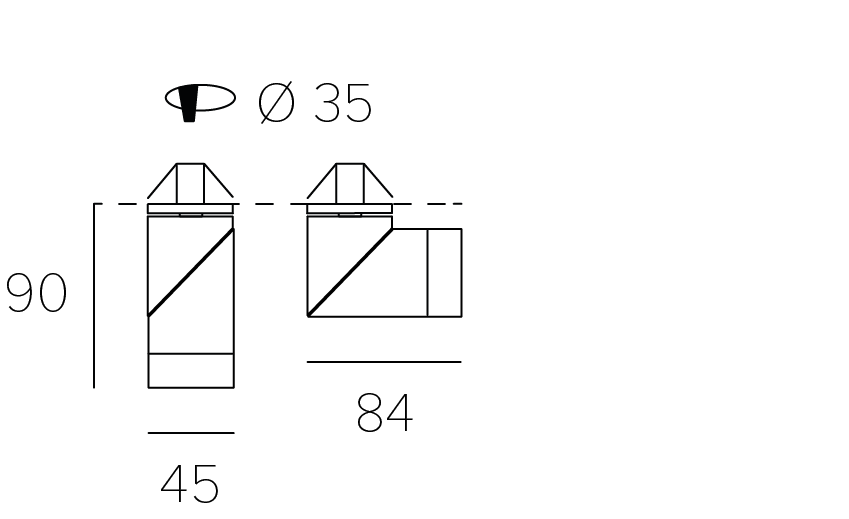

Recessed light source
1 x 9W – 250 mA
2700K CRI 97 – 728 lm
59300 White
59500 Black
3000K CRI 97 – 770 lm
59301 White
59501 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.30

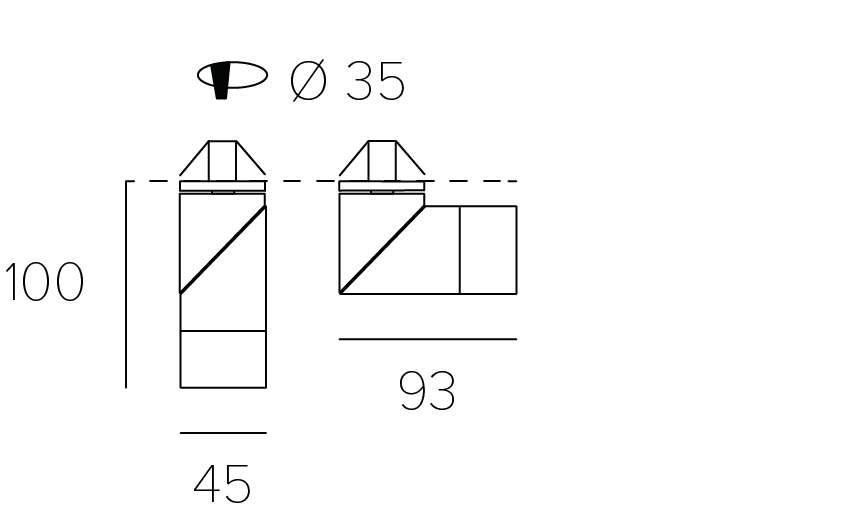

Recessed Dark light source
1 x 9W – 250 mA
2700K CRI 97 – 698 lm
59320 White
59520 Black
3000K CRI 97 – 740 lm
59321 White
59521 Black
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.32

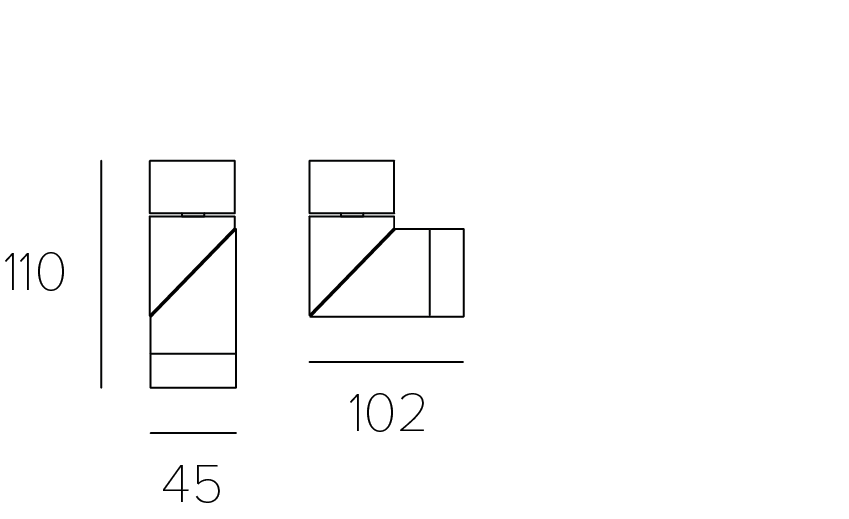

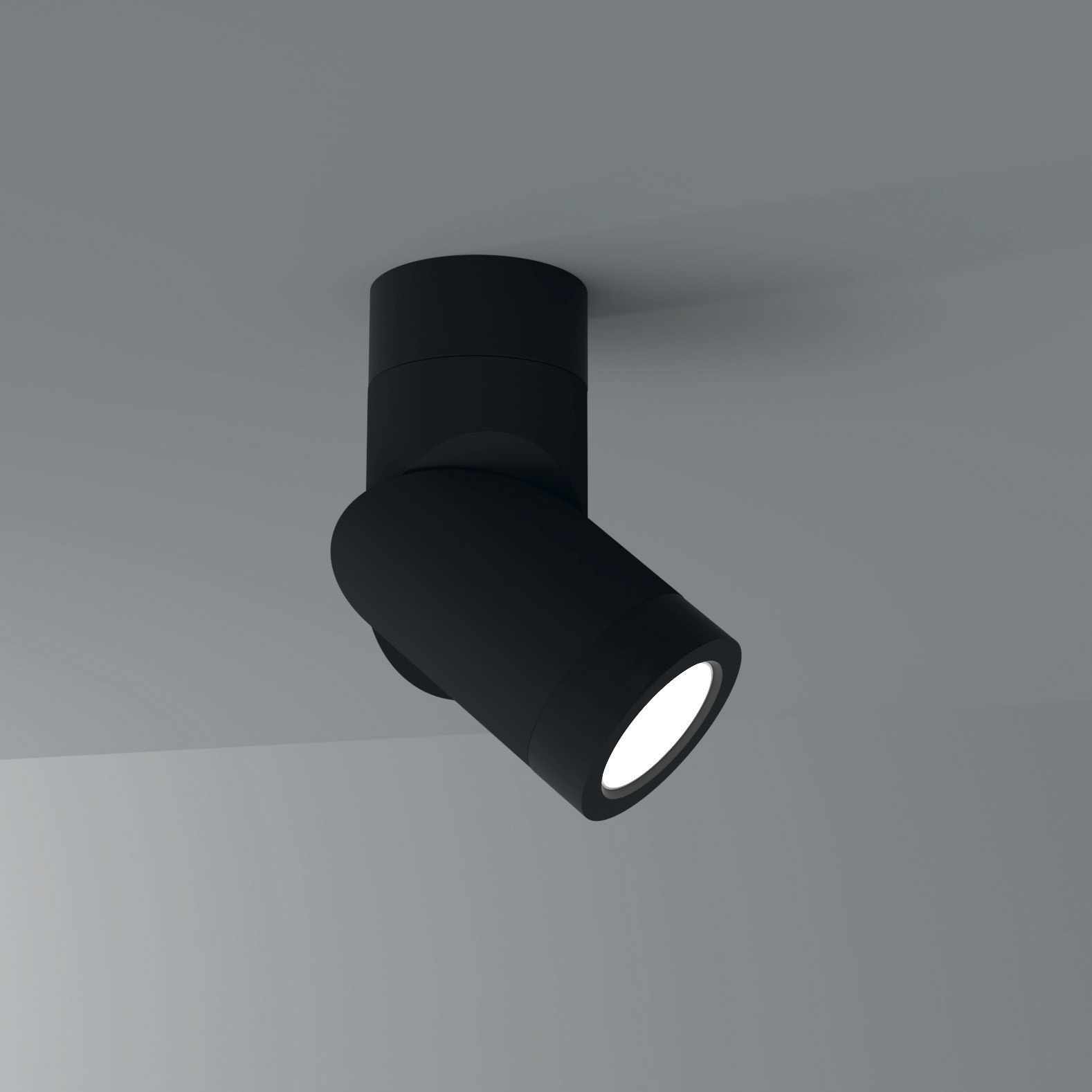

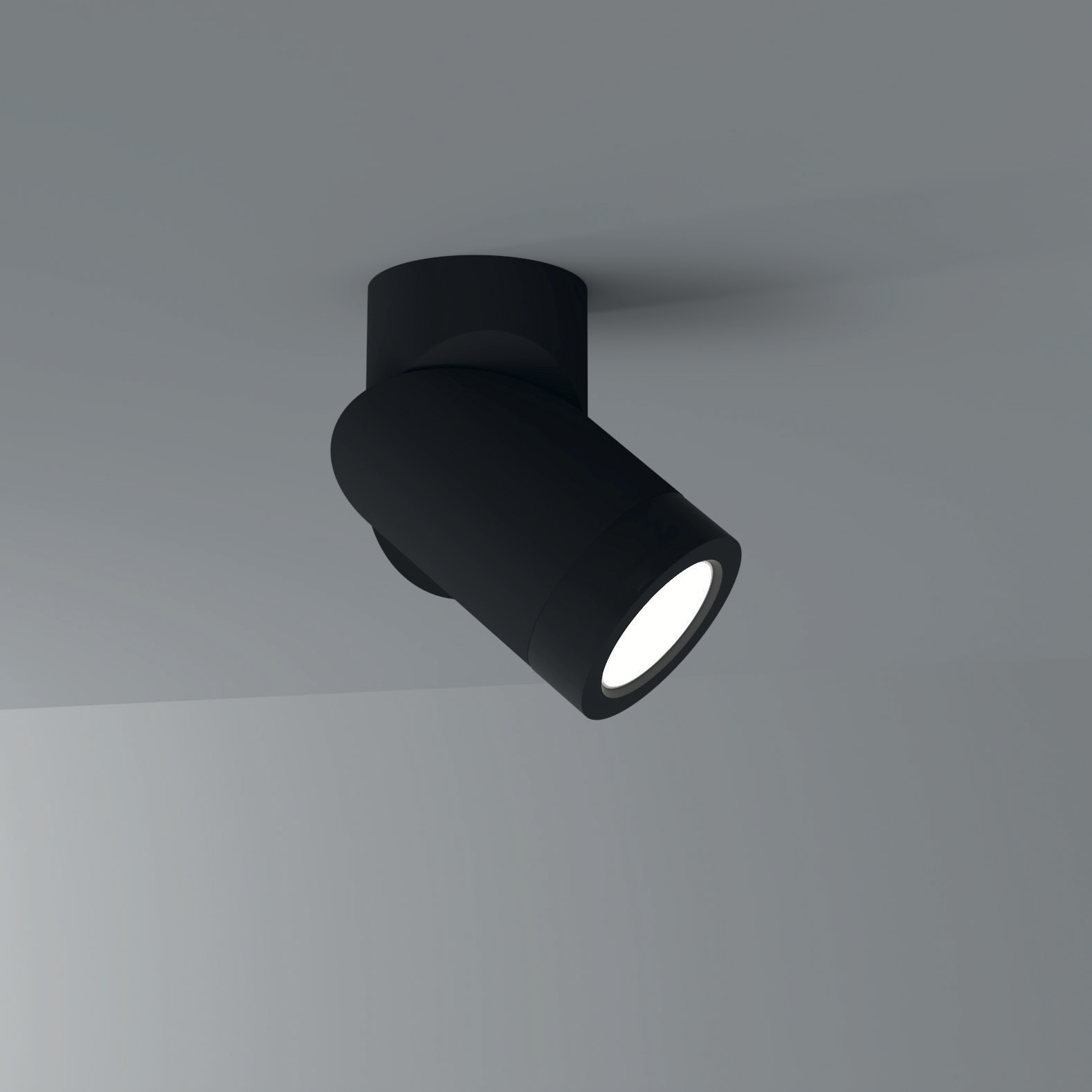

Ceiling light source
1 x 9W – 250 mA
2700K CRI 97 – 728 lm
59310 White
59510 Black
3000K CRI 97 – 770 lm
59311 White
59511 Black
To be completed with lenses
40102 20°
40103 40°
40104 60°
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.29

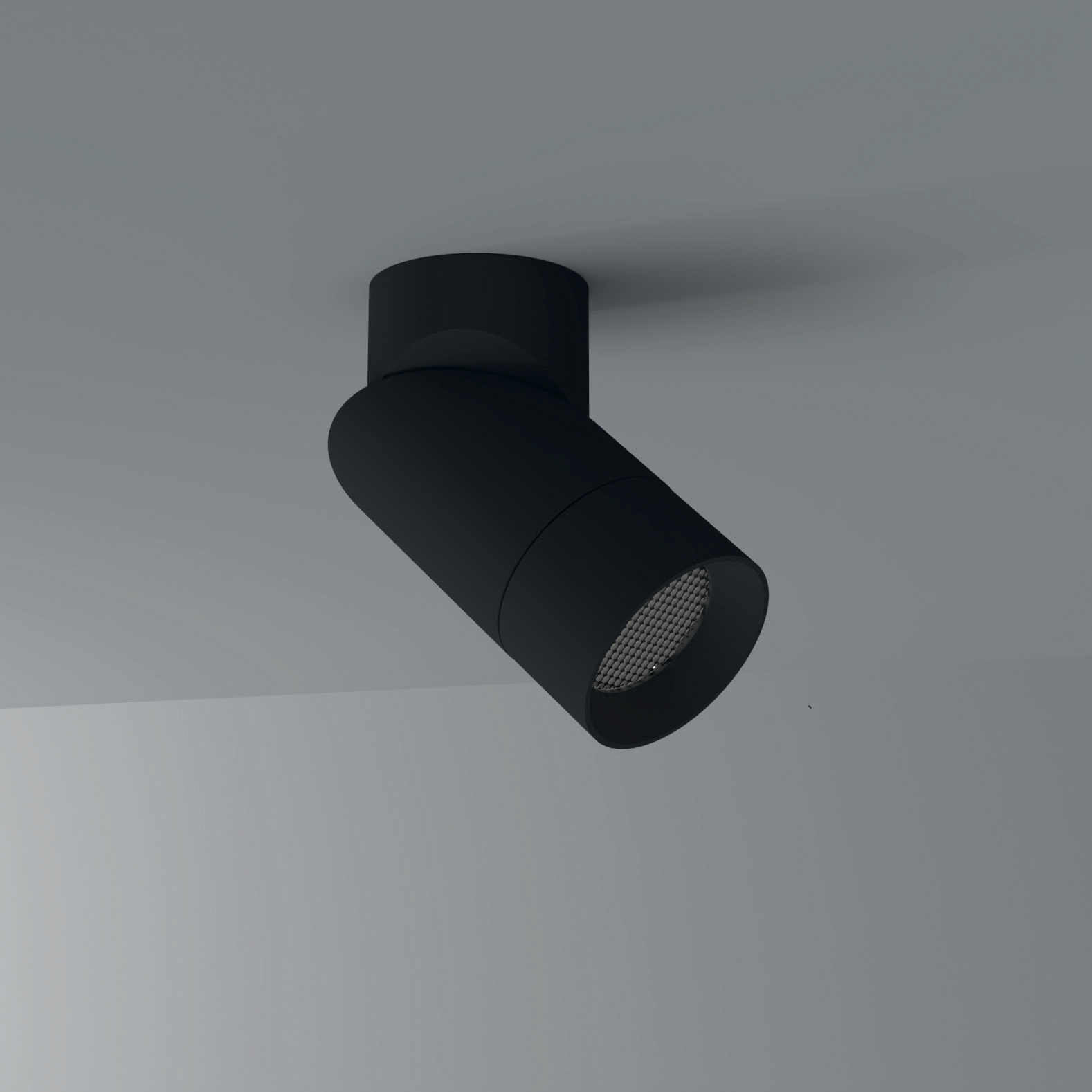

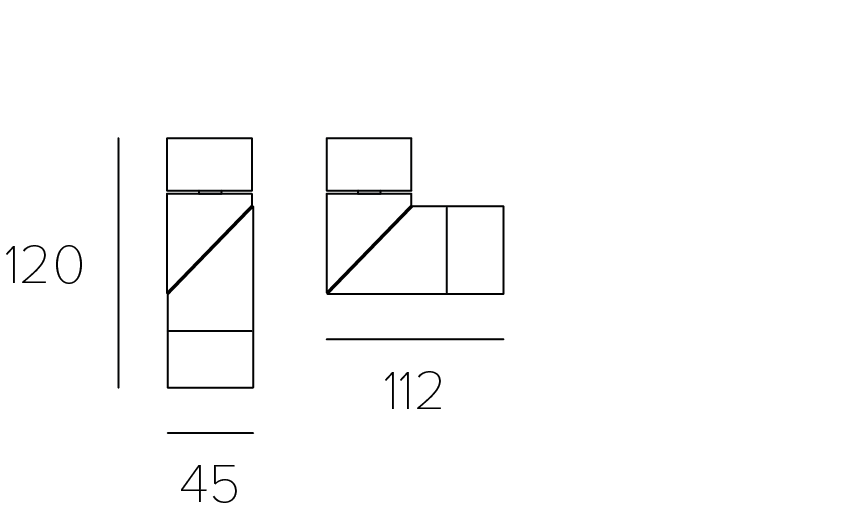

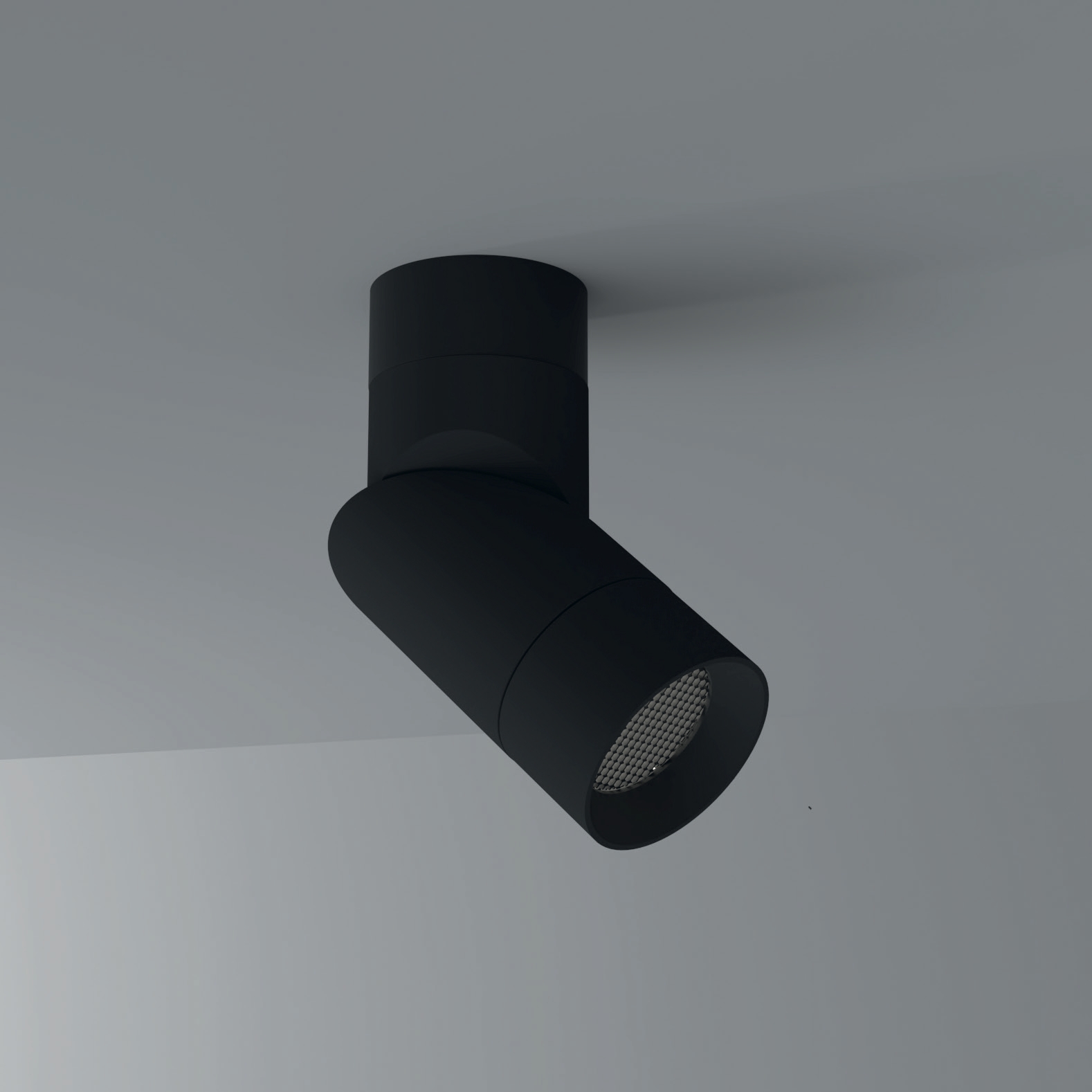

Ceiling Dark light source
1 x 9W – 250 mA
2700K CRI 97 – 698 lm
59330 White
59530 Black
3000K CRI 97 – 740 lm
59331 White
59531 Black
20° lens and honeycomb included
| Power supply to be added | |||
| 25180 | 250mA – 10W Not dimmable |
||
| 25182 | 250mA – 10W Dimmable 0-10V, 1-10V, PUSH |
||
| 25158 | 250mA – 10W Dimmable DALI 1/2 |
||
Download
Kg 0.31
Different shade LEDs [2700K, 3000K and others on request]. CRI 97. User interchangeable lens to change the ambient lighting [20°, 40°, 60°].
