LEVEL / STUDIO

The STUDIO sources can be moved and added at will, with extreme simplicity, through the snap fastening system.
The LEVEL STUDIO sources can be rotated up to 90° on both sides, allowing lateral lighting of the environment.

Available in the Dark version and in the diffuser version. Painted aluminum body. Integrated PWM dimmable electronics, compatible with all control technologies [DALI, Isolated pushbutton, 100K Linear Potentiometer, 0-10V Passive, 1-10V Passive].

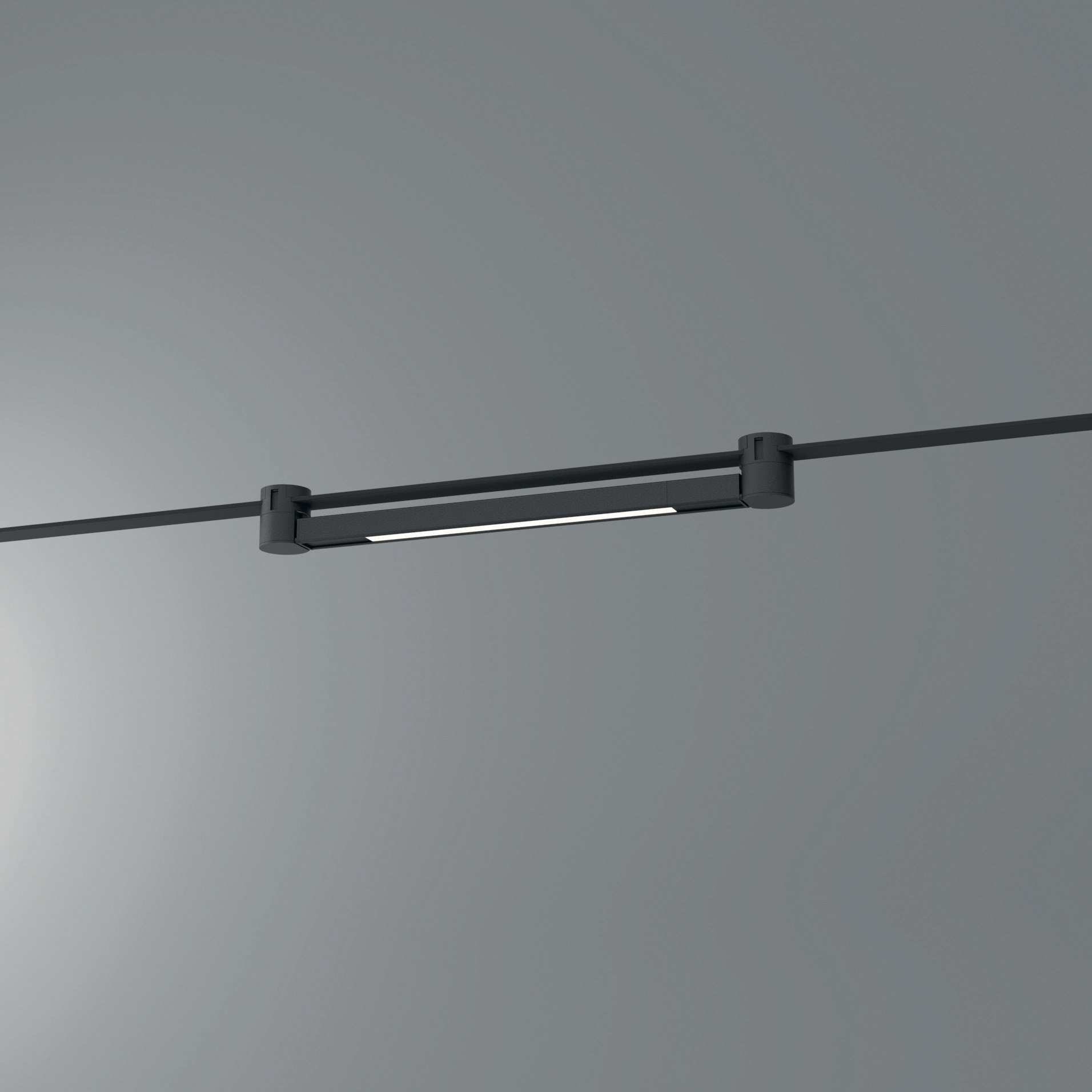

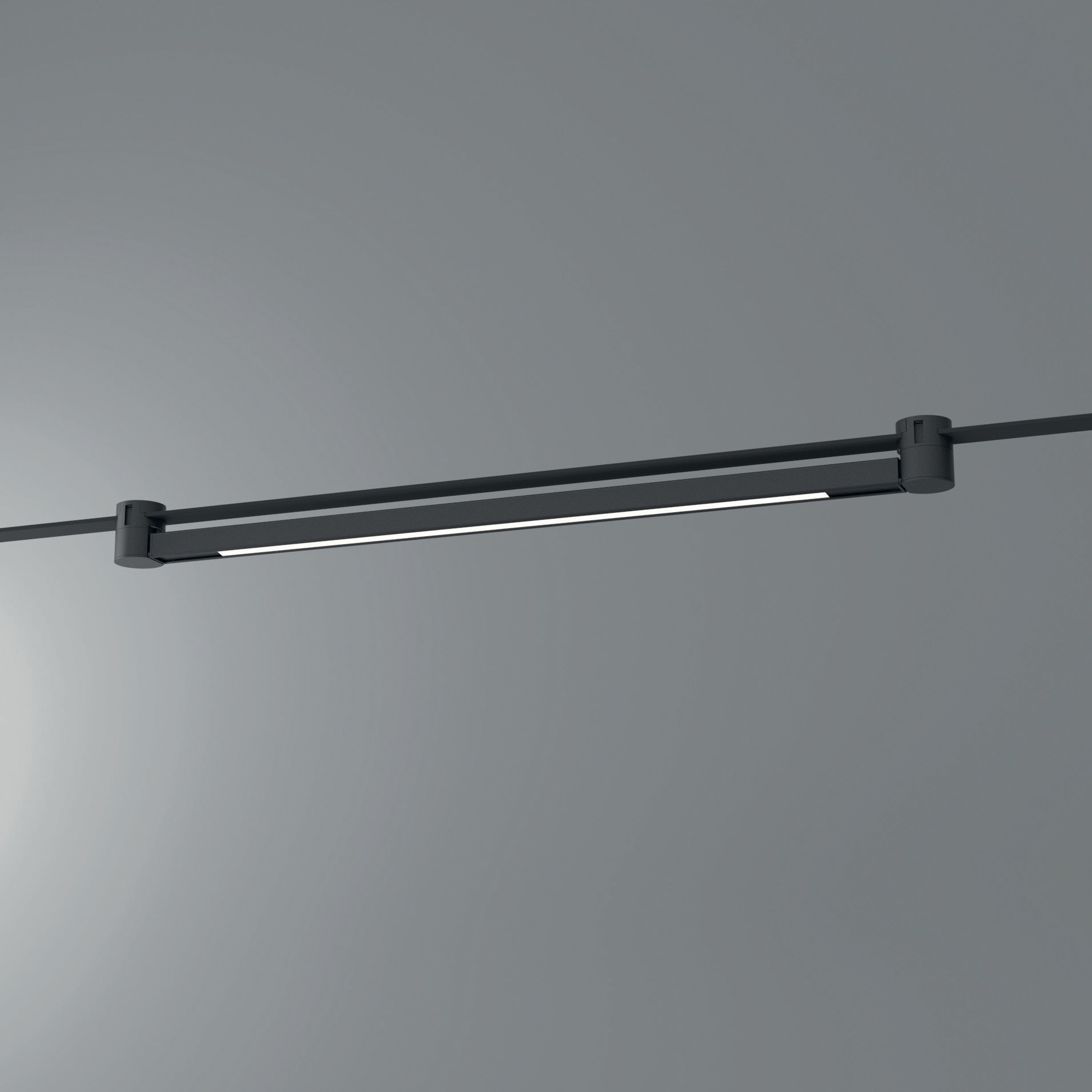

Light source with diffuser

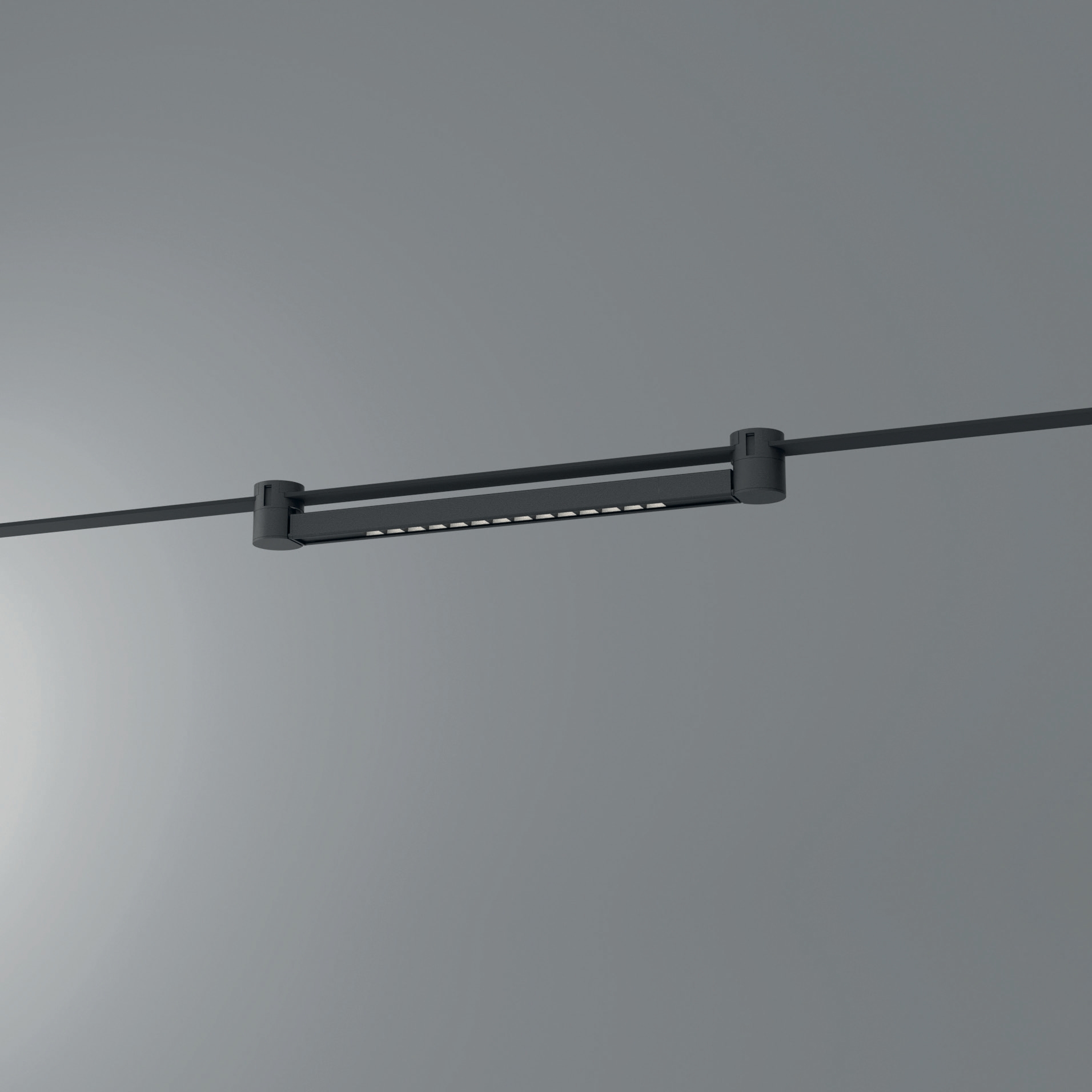

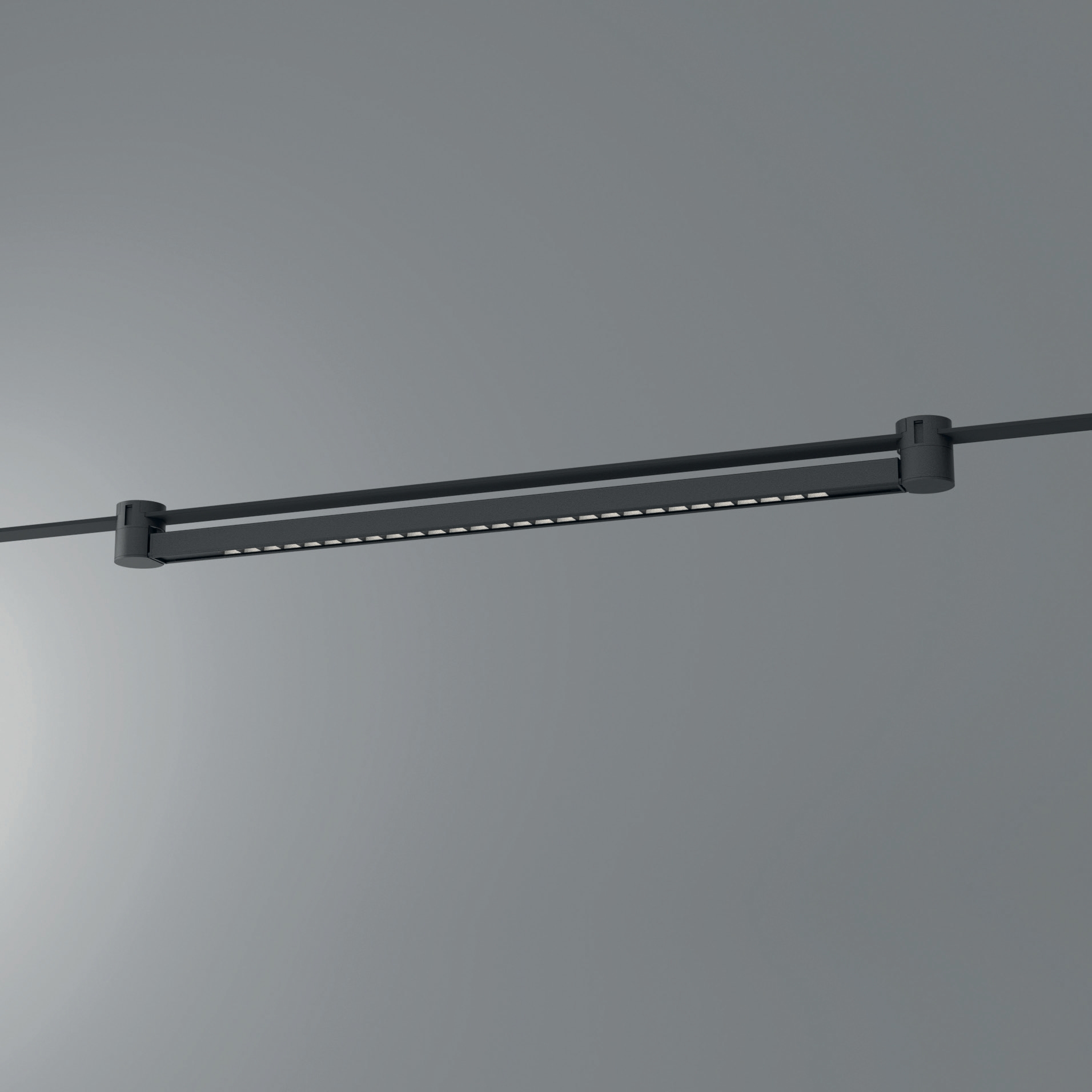

Dark light source
Light source with diffuser
Dark light source

ON-OFF / PWM Dimmable 9W – 48V

2700K CRI 90 – 800 lm
48310 White
48510 Black

3000K CRI 90 – 850 lm
48311 White
48511 Black

ON-OFF / PWM Dimmable 9W – 48V

2700K CRI 90 – 700 lm
48300 White
48500 Black

3000K CRI 90 – 750 lm
48301 White
48501 Black

ON-OFF / PWM Dimmable 18W – 48V

2700K CRI 90 – 1600 lm
48330 White
48530 Black

3000K CRI 90 – 1700 lm
48331 White
48531 Black

ON-OFF / PWM Dimmable 18W – 48V

2700K CRI 90 – 1400 lm
48320 White
48520 Black

3000K CRI 90 – 1500 lm
48321 White
48521 Black

Dimmable converter included.

Dimmable converter included.

Dimmable converter included.

Dimmable converter included.

Kg 0.48

Kg 0.48

Kg 0.69

Kg 0.69

Light source with diffuser

ON-OFF / PWM Dimmable 9W – 48V

2700K CRI 90 – 800 lm
48310 White
48510 Black

3000K CRI 90 – 850 lm
48311 White
48511 Black

Dimmable converter included.

Download

Kg 0.48

Dark light source

ON-OFF / PWM Dimmable 9W – 48V

2700K CRI 90 – 700 lm
48300 White
48500 Black

3000K CRI 90 – 750 lm
48301 White
48501 Black

Dimmable converter included.

Download

Kg 0.48

Light source with diffuser

ON-OFF / PWM Dimmable 18W – 48V

2700K CRI 90 – 1600 lm
48330 White
48530 Black

3000K CRI 90 – 1700 lm
48331 White
48531 Black

Dimmable converter included.

Download

Kg 0.69

Dark light source

ON-OFF / PWM Dimmable 18W – 48V

2700K CRI 90 – 1400 lm
48320 White
48520 Black

3000K CRI 90 – 1500 lm
48321 White
48521 Black

Dimmable converter included.

Download

Kg 0.69

Suspension with diffuser
Dark suspension

ON-OFF / PWM Dimmable 27W – 48V

2700K CRI 90 – 2400 lm
48360 White
48560 Black

3000K CRI 90 – 2550 lm
48361 White
48561 Black

ON-OFF / PWM Dimmable 27W – 48V

2700K CRI 90 – 2100 lm
48350 White
48550 Black

3000K CRI 90 – 2250 lm
48351 White
48551 Black

Dimmable converter included.

Adjustable cable.

Dimmable converter included.

Adjustable cable.

Kg 0.89

Kg 0.89

Suspension with diffuser

ON-OFF / PWM Dimmable 27W – 48V

2700K CRI 90 – 2400 lm
48360 White
48560 Black

3000K CRI 90 – 2550 lm
48361 White
48561 Black

Dimmable converter included.

Adjustable cable.

Download

Kg 0.89

Dark suspension

ON-OFF / PWM Dimmable 27W – 48V

2700K CRI 90 – 2100 lm
48350 White
48550 Black

3000K CRI 90 – 2250 lm
48351 White
48551 Black

Dimmable converter included.

Adjustable cable.

Download

Kg 0.89
