LEVEL / MINI

MINI are compact sources that can be moved and added at will, with extreme simplicity, through a snap fastening system.
Easy replacement of secondary optics.
Painted aluminum body.
Integrated dimmable electronics.

Fixed Dark light source
Adjustable Dark light source

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46330 White
46530 Black

3000K CRI 97 – 770 lm
46331 White
46531 Black

Da completare con ottiche
40102 20°
40103 40°
40104 60°

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 698 lm
47300 White
47500 Black

3000K CRI 97 – 740 lm
47301 White
47501 Black

20° lens and honeycomb included.



Dimmable converter included.

Dimmable converter included.

Kg 0.12

Kg 0.11

The installation of the LEVEL system in vertical position is allowed only with the adjustable MINI source.
MINI sources can be connected to other types of systems [DALI, Insulated pushbutton, Potentiometer Linear 100K, 0-10V Passive, 1-10V Passive].
Different shade LEDs [2700K, 3000K]. CRI 97.
User interchangeable optics [20°, 40°, 60°].

Fixed Dark light source

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
42330 White
42530 Black

3000K CRI 97 – 770 lm
42331 White
42531 Black

To be completed with lenses
40102 20°
40103 40°
40104 60°

Dimmable converter included.

Download

Kg 0.12

Adjustable Dark light source

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 698 lm
47300 White
47500 Black

3000K CRI 97 – 740 lm
47301 White
47501 Black

20° lens and honeycomb included.



Dimmable converter included.

Download

Kg 0.11

The installation of the LEVEL system in vertical position is allowed only with the adjustable MINI source.
MINI sources can be connected to other types of systems [DALI, Insulated pushbutton, Potentiometer Linear 100K, 0-10V Passive, 1-10V Passive].
Different shade LEDs [2700K, 3000K]. CRI 97.
User interchangeable optics [20°, 40°, 60°].

Fixed light source
Fixed light source
Fixed light source with diffuser

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46340 White
46540 Black

3000K CRI 97 – 770 lm
46341 White
46541 Black

To be completed with lenses
40102 20°
40103 40°
40104 60°

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 698 lm
47310 White
47510 Black

3000K CRI 97 – 740 lm
47311 White
47511 Black

20° lens and honeycomb included.



ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46350 White
46550 Black

3000K CRI 97 – 770 lm
46351 White
46551 Black

Dimmable converter included.

Dimmable converter included.

Dimmable converter included.

Kg 0.11

Kg 0.13

Kg 0.11

Fixed light source

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46340 White
46540 Black

3000K CRI 97 – 770 lm
46341 White
46541 Black

To be completed with lenses
40102 20°
40103 40°
40104 60°

Dimmable converter included.

Download

Kg 0.11

Fixed light source

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 698 lm
47310 White
47510 Black

3000K CRI 97 – 740 lm
47311 White
47511 Black

20° lens and honeycomb included.



Dimmable converter included.

Download

Kg 0.13

Fixed light source with diffuser

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46350 White
46550 Black

3000K CRI 97 – 770 lm
46351 White
46551 Black

Dimmable converter included.

Download

Kg 0.11

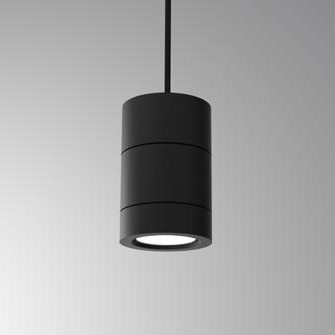

Suspension
Suspension Dark
Suspension with diffuser

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46360 White
46560 Black

3000K CRI 97 – 770 lm
46361 White
46561 Black

To be completed with lenses
40102 20°
40103 40°
40104 60°

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 698 lm
47320 White
47520 Black

3000K CRI 97 – 740 lm
47321 White
47521 Black

20° lens and honeycomb included.



ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46370 White
46570 Black

3000K CRI 97 – 770 lm
46371 White
46571 Black

Dimmable converter included.

Dimmable converter included.

Dimmable converter included.

Kg 0.23

Kg 0.25

Kg 0.23

Suspension

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46360 White
46560 Black

3000K CRI 97 – 770 lm
46361 White
46561 Black

To be completed with lenses
40102 20°
40103 40°
40104 60°

Download

Dimmable converter included.

Kg 0.23

Suspension Dark

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 698 lm
47320 White
47520 Black

3000K CRI 97 – 740 lm
47321 White
47521 Black

20° lens and honeycomb included.



Download

Dimmable converter included.

Kg 0.25

Suspension with diffuser

ON-OFF / PWM Dimmable
1 x 9W – 48V

2700K CRI 97 – 728 lm
46370 White
46570 Black

3000K CRI 97 – 770 lm
46371 White
46571 Black

Download

Dimmable converter included.

Kg 0.23
