BOB

Chiaro e tondo.

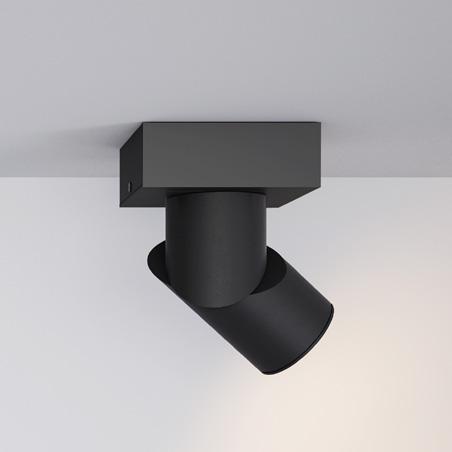

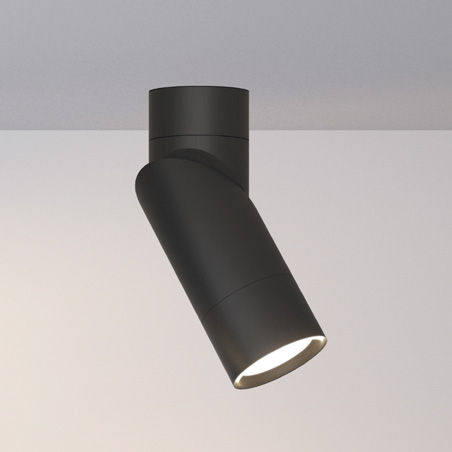

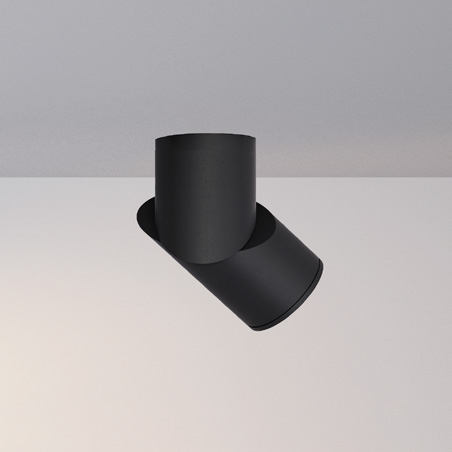

BOB è uno spot LED con doppio snodo che permette un’inclinazione di 90° sul piano orizzontale e una rotazione di 360° attorno all’asse verticale. Struttura e dissipatore in alluminio. Facile sostituzione dell’ottica secondaria.

Nella versione LED, BOB è disponibile con adattatore compatibile con la maggior parte dei binari elettrificati trifase.

letroh surface bob spot incasso
letroh surface bob spot parete soffitto
letroh surface bob spot parete soffitto
letroh surface bob spot trifase
Spot a incasso
Spot parete/soffitto
Spot parete/soffitto
Spot trifase

1 LED x 13/20W

3000K CRI 90 – 1150 / 1900 lm
52381 Bianco
52581 Nero

4000K CRI 90 – 1200 / 2000 lm
52382 Bianco
52582 Nero

1 LED x 13/20W

3000K CRI 90 – 1150 / 1900 lm
52371 Bianco
52571 Nero

4000K CRI 90 – 1200 / 2000 lm
52372 Bianco
52572 Nero

1 LED x 20W – 500 mA

3000K CRI 90 – 1900 lm
54381 Bianco
54581 Nero

4000K CRI 90 – 2000 lm
54382 Bianco
54582 Nero

1 LED x 20W – 500mA DALI 2

3000K CRI 90 / 1900 lm
57381 Bianco
57581 Nero

4000K CRI 90 – 2000 lm
57382 Bianco
57582 Nero



1 LED x 20W – 500mA Not dimmable

3000K CRI 90 – 1900 lm
58381 Bianco
58581 Nero

4000K CRI 90 – 2000 lm
58382 Bianco
58582 Nero

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Alimentatore da aggiungere
25150 350mA – 13W Dimmable cut phase
25152 500mA – 20W Dimmable cut phase
25156 350/500mA – 13/20W CASAMBI
25153 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V

Opzionale
25160 CASAMBI Remote control

Alimentatore da aggiungere
25150 350mA – 13W Dimmable cut phase
25152 500mA – 20W Dimmable cut phase
25156 350/500mA – 13/20W CASAMBI
25153 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V

Opzionale
25160 CASAMBI Remote control

Alimentatore incluso
Dimmerabile taglio di fase

Alimentatore incluso
Dimmerabile DALI 2

letroh surface bob spot parete soffitto alim
letroh surface bob spot parete soffitto
letroh surface bob spot trifase

Kg 0.74

Kg 0.76

Kg 0.82

Kg 0.90

letroh surface bob spot incasso
Spot a incasso

1 LED x 13/20W

3000K CRI 90 – 1150 / 1900 lm
52381 Bianco
52581 Nero

4000K CRI 90 – 1200 / 2000 lm
52382 Bianco
52582 Nero

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Alimentatore da aggiungere
25150 350mA – 13W Dimmable cut phase
25152 500mA – 20W Dimmable cut phase
25156 350/500mA – 13/20W CASAMBI
25153 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V

Opzionale
25160 CASAMBI Remote control

Download

Kg 0.74

letroh surface bob spot parete soffitto
Spot parete/soffitto

1 LED x 13/20W

3000K CRI 90 – 1150 / 1900 lm
52371 Bianco
52571 Nero

4000K CRI 90 – 1200 / 2000 lm
52372 Bianco
52572 Nero

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Alimentatore da aggiungere
25150 350mA – 13W Dimmable cut phase
25152 500mA – 20W Dimmable cut phase
25156 350/500mA – 13/20W CASAMBI
25153 350/500mA – 13/20W DALI 1 – 2, Push, 0-10V, 1-10V

Opzionale
25160 CASAMBI Remote control

letroh surface bob spot parete soffitto alim
Download

Kg 0.76

letroh surface bob spot parete soffitto
Spot parete/soffitto

1 LED x 20W – 500 mA

3000K CRI 90 – 1900 lm
54381 Bianco
54581 Nero

4000K CRI 90 – 2000 lm
54382 Bianco
54582 Nero

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Alimentatore incluso
Dimmerabile taglio di fase

letroh surface bob spot parete soffitto
Download

Kg 0.82

letroh surface bob spot trifase
Spot trifase

1 LED x 20W – 500mA DALI 2

3000K CRI 90 / 1900 lm
57381 Bianco
57581 Nero

4000K CRI 90 – 2000 lm
57382 Bianco
57582 Nero



1 LED x 20W – 500mA Not dimmable

3000K CRI 90 – 1900 lm
58381 Bianco
58581 Nero

4000K CRI 90 – 2000 lm
58382 Bianco
58582 Nero

Da completare con ottiche
51102 30°
51104 40°
51106 60°
51108 Oval
51110 Rectangular
51112 Wallwasher

Alimentatore incluso
Dimmerabile DALI 2

letroh surface bob spot trifase
Download

Kg 0.90

Ottiche: 30°, 40°, 60°, ovale, rettangolare, Wallwasher. LED di differenti tonalità [3000K, 4000K]. Disponibile nella versione CRI 90.

Ottiche: 30°, 40°, 60°, ovale, rettangolare, Wallwasher. LED di differenti tonalità [3000K, 4000K]. Disponibile nella versione CRI 90.

letroh surface bob spot incasso GU10
letroh surface bob spot parete soffitto gu10
Spot a incasso GU10
Spot a parete/soffitto GU10

230V – GU10 – MAX 10W LED

52390 Bianco
52590 Nero

230V – GU10 – MAX 10W LED

54390 Bianco
54590 Nero

letroh surface bobo gu10 spot parete soffitto

Kg 0.80

Kg 0.82

letroh surface bob spot incasso GU10
Spot a incasso GU10

230V – GU10 – MAX 10W LED

52390 Bianco
52590 Nero

Download

Kg 0.80

letroh surface bob spot parete soffitto gu10
Spot a parete/soffitto GU10

230V – GU10 – MAX 10W LED

54390 Bianco
54590 Nero

letroh surface bobo gu10 spot parete soffitto
Download

Kg 0.82
