Viavai

MINI

MINI, sorgenti compatte che possono essere spostate e aggiunte a piacimento, con estrema semplicità, attraverso il sistema di fissaggio a scatto. Facile sostituzione delle ottiche secondarie. Corpo in alluminio verniciato.
Nella versione DALI 2, le sorgenti MINI possono essere controllate in modalità One by One.
Attraverso l’utilizzo del dispositivo Casambi Voice 40219 è possibile collegare le sorgenti DALI 2 all’ambiente Casambi in modalità One by One.
Nella versone 0-10V, 1-10V possono essere dimmerate senza l’utilizzo di alcun dimmer aggiuntivo (modalità broadcast).
Nella versione PWM, attraverso l’utilizzo dei dimmer PWM 40209-40215-40216-40217-40218, in abbinamento agli alimentatori non dimmerabili 40205- 40210-40213, consentono la massima compatibilità ai differenti sistemi di dimmerazione: 0-10V, 1-10V, Push, potenziometro, taglio di fase, DALI 1, DALI 2, Casambi, Amazon Alexa, Google Home e Matter [Apple Home]. Le sorgenti sono controllate in modalità broadcast.

Sorgente orientabile
Sorgente Dark orientabile
Sorgente parete

Bianco
1 x 9W – 48V

Bianco
1 x 9W – 48V

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83330 ON-OFF / PWM Dimmable
86330 0-10 / 1-10V Dimmable
87330 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83331 ON-OFF / PWM Dimmable
86331 0-10 / 1-10V Dimmable
87331 DALI 2 Dimmable

2700K CRI 97 – 698 lm
84300 ON-OFF / PWM Dimmable
89300 0-10 / 1-10V Dimmable
88300 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84301 ON-OFF / PWM Dimmable
89301 0-10 / 1-10V Dimmable
88301 DALI 2 Dimmable

2700K CRI 97 – 728 lm
83380 ON-OFF / PWM Dimmable
86380 0-10 / 1-10V Dimmable
87380 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83381 ON-OFF / PWM Dimmable
86381 0-10 / 1-10V Dimmable
87381 DALI 2 Dimmable

Nero
1 x 9W – 48V

Nero
1 x 9W – 48V

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83530 ON-OFF / PWM Dimmable
86530 0-10 / 1-10V Dimmable
87530 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83531 ON-OFF / PWM Dimmable
86531 0-10 / 1-10V Dimmable
87531 DALI 2 Dimmable

2700K CRI 97 – 698 lm
84500 ON-OFF / PWM Dimmable
89500 0-10 / 1-10V Dimmable
85300 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84501 ON-OFF / PWM Dimmable
89501 0-10 / 1-10V Dimmable
88501 DALI 2 Dimmable

2700K CRI 97 – 728 lm
83580 ON-OFF / PWM Dimmable
86580 0-10 / 1-10V Dimmable
87580 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83581 ON-OFF / PWM Dimmable
86581 0-10 / 1-10V Dimmable
87581 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Include “nido d’ape” e ottica 20°

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Kg 0.12

Kg 0.14

Kg 0.30

Sorgente orientabile

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83330 ON-OFF / PWM Dimmable
86330 0-10 / 1-10V Dimmable
87330 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83331 ON-OFF / PWM Dimmable
86331 0-10 / 1-10V Dimmable
87331 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83530 ON-OFF / PWM Dimmable
86530 0-10 / 1-10V Dimmable
87530 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83531 ON-OFF / PWM Dimmable
86531 0-10 / 1-10V Dimmable
87531 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Download

Kg 0.12

Sorgente Dark orientabile

Bianco
1 x 9W – 48V

2700K CRI 97 – 698 lm
84300 ON-OFF / PWM Dimmable
89300 0-10 / 1-10V Dimmable
88300 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84301 ON-OFF / PWM Dimmable
89301 0-10 / 1-10V Dimmable
88301 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 698 lm
84500 ON-OFF / PWM Dimmable
89500 0-10 / 1-10V Dimmable
85300 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84501 ON-OFF / PWM Dimmable
89501 0-10 / 1-10V Dimmable
88501 DALI 2 Dimmable

Include “nido d’ape” e ottica 20°

Download

Kg 0.14

Sorgente parete

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83380 ON-OFF / PWM Dimmable
86380 0-10 / 1-10V Dimmable
87380 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83381 ON-OFF / PWM Dimmable
86381 0-10 / 1-10V Dimmable
87381 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83580 ON-OFF / PWM Dimmable
86580 0-10 / 1-10V Dimmable
87580 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83581 ON-OFF / PWM Dimmable
86581 0-10 / 1-10V Dimmable
87581 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Download

Kg 0.30

LED di differenti tonalità [2700K, 3000K e altre su richiesta]. CRI 97. Circuito elettronico integrato. Ottica intercambiabile dall’utente per modificare l’illuminazione dell’ambiente [20°, 40°, 60°]. Le sorgenti MINI possono essere collegate ad impianti di differenti tipologie di dimmerazione.

Sorgente fissa
Sorgente Dark fissa
Sorgente fissa con diffusore

Bianco
1 x 9W – 48V

Bianco
1 x 9W – 48V

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83340 ON-OFF / PWM Dimmable
86340 0-10 / 1-10V Dimmable
87340 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83341 ON-OFF / PWM Dimmable
86341 0-10 / 1-10V Dimmable
87341 DALI 2 Dimmable

2700K CRI 97 – 698 lm
84310 ON-OFF / PWM Dimmable
89310 0-10 / 1-10V Dimmable
88310 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84311 ON-OFF / PWM Dimmable
89311 0-10 / 1-10V Dimmable
88311 DALI 2 Dimmable

2700K CRI 97 – 728 lm
83350 ON-OFF / PWM Dimmable
86350 0-10 / 1-10V Dimmable
87350 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83351 ON-OFF / PWM Dimmable
86351 0-10 / 1-10V Dimmable
87351 DALI 2 Dimmable

Nero
1 x 9W – 48V

Nero
1 x 9W – 48V

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83540 ON-OFF / PWM Dimmable
86540 0-10 / 1-10V Dimmable
87540 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83541 ON-OFF / PWM Dimmable
86541 0-10 / 1-10V Dimmable
87541 DALI 2 Dimmable

2700K CRI 97 – 698 lm
84510 ON-OFF / PWM Dimmable
89510 0-10 / 1-10V Dimmable
88510 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84511 ON-OFF / PWM Dimmable
89511 0-10 / 1-10V Dimmable
88511 DALI 2 Dimmable

2700K CRI 97 – 728 lm
83550 ON-OFF / PWM Dimmable
86550 0-10 / 1-10V Dimmable
87550 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83551 ON-OFF / PWM Dimmable
86551 0-10 / 1-10V Dimmable
87551 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Include “nido d’ape” e ottica 20°

ATTENZIONE!
Se utilizzato con binario inserito in cassaforma arretrata 16325- 16525, aggiungere DS al codice in fase d’ordine [es. 83340DS].

ATTENZIONE!
Se utilizzato con binario inserito in cassaforma arretrata 16325- 16525, aggiungere DS al codice in fase d’ordine [es. 83340DS].

ATTENZIONE!
Se utilizzato con binario inserito in cassaforma arretrata 16325- 16525, aggiungere DS al codice in fase d’ordine [es. 83340DS].

Kg 0.11

Kg 0.14

Kg 0.11

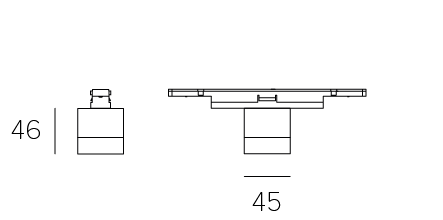

Sorgente fissa

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83340 ON-OFF / PWM Dimmable
86340 0-10 / 1-10V Dimmable
87340 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83341 ON-OFF / PWM Dimmable
86341 0-10 / 1-10V Dimmable
87341 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83540 ON-OFF / PWM Dimmable
86540 0-10 / 1-10V Dimmable
87540 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83541 ON-OFF / PWM Dimmable
86541 0-10 / 1-10V Dimmable
87541 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

ATTENZIONE!
Se utilizzato con binario inserito in cassaforma arretrata 16325- 16525, aggiungere DS al codice in fase d’ordine [es. 83340DS].

Download

Kg 0.11

Sorgente Dark fissa

Bianco
1 x 9W – 48V

2700K CRI 97 – 698 lm
84310 ON-OFF / PWM Dimmable
89310 0-10 / 1-10V Dimmable
88310 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84311 ON-OFF / PWM Dimmable
89311 0-10 / 1-10V Dimmable
88311 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 698 lm
84510 ON-OFF / PWM Dimmable
89510 0-10 / 1-10V Dimmable
88510 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84511 ON-OFF / PWM Dimmable
89511 0-10 / 1-10V Dimmable
88511 DALI 2 Dimmable

Include “nido d’ape” e ottica 20°

ATTENZIONE!
Se utilizzato con binario inserito in cassaforma arretrata 16325- 16525, aggiungere DS al codice in fase d’ordine [es. 83340DS].

Download

Kg 0.14

Sorgente fissa con diffusore

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83350 ON-OFF / PWM Dimmable
86350 0-10 / 1-10V Dimmable
87350 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83351 ON-OFF / PWM Dimmable
86351 0-10 / 1-10V Dimmable
87351 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83550 ON-OFF / PWM Dimmable
86550 0-10 / 1-10V Dimmable
87550 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83551 ON-OFF / PWM Dimmable
86551 0-10 / 1-10V Dimmable
87551 DALI 2 Dimmable

ATTENZIONE!
Se utilizzato con binario inserito in cassaforma arretrata 16325- 16525, aggiungere DS al codice in fase d’ordine [es. 83340DS].

Download

Kg 0.11

Sospensione
Sospensione Dark
Sospensione con diffusore

Bianco
1 x 9W – 48V

Bianco
1 x 9W – 48V

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83360 ON-OFF / PWM Dimmable
86360 0-10 / 1-10V Dimmable
87360 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83361 ON-OFF / PWM Dimmable
86361 0-10 / 1-10V Dimmable
87361 DALI 2 Dimmable

2700K CRI 97 – 698 lm
84320 ON-OFF / PWM Dimmable
89320 0-10 / 1-10V Dimmable
88320 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84321 ON-OFF / PWM Dimmable
89321 0-10 / 1-10V Dimmable
88321 DALI 2 Dimmable

2700K CRI 97 – 728 lm
83370 ON-OFF / PWM Dimmable
86370 0-10 / 1-10V Dimmable
87370 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83371 ON-OFF / PWM Dimmable
86371 0-10 / 1-10V Dimmable
87371 DALI 2 Dimmable

Nero
1 x 9W – 48V

Nero
1 x 9W – 48V

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83560 ON-OFF / PWM Dimmable
86560 0-10 / 1-10V Dimmable
87560 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83561 ON-OFF / PWM Dimmable
86561 0-10 / 1-10V Dimmable
87561 DALI 2 Dimmable

2700K CRI 97 – 698 lm
84520 ON-OFF / PWM Dimmable
89520 0-10 / 1-10V Dimmable
88520 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84521 ON-OFF / PWM Dimmable
89521 0-10 / 1-10V Dimmable
88521 DALI 2 Dimmable

2700K CRI 97 – 728 lm
83570 ON-OFF / PWM Dimmable
86570 0-10 / 1-10V Dimmable
87570 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83571 ON-OFF / PWM Dimmable
86571 0-10 / 1-10V Dimmable
87571 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Include “nido d’ape” e ottica 20°

Cavo regolabile.

Cavo regolabile.

Cavo regolabile.

Kg 0.23

Kg 0.25

Kg 0.23

Sospensione

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83360 ON-OFF / PWM Dimmable
86360 0-10 / 1-10V Dimmable
87360 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83361 ON-OFF / PWM Dimmable
86361 0-10 / 1-10V Dimmable
87361 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83560 ON-OFF / PWM Dimmable
86560 0-10 / 1-10V Dimmable
87560 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83561 ON-OFF / PWM Dimmable
86561 0-10 / 1-10V Dimmable
87561 DALI 2 Dimmable

Da completare con ottiche
40102 20°
40103 40°
40104 60°

Cavo regolabile.

Download

Kg 0.23

Sospensione Dark

Bianco
1 x 9W – 48V

2700K CRI 97 – 698 lm
84320 ON-OFF / PWM Dimmable
89320 0-10 / 1-10V Dimmable
88320 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84321 ON-OFF / PWM Dimmable
89321 0-10 / 1-10V Dimmable
88321 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 698 lm
84520 ON-OFF / PWM Dimmable
89520 0-10 / 1-10V Dimmable
88520 DALI 2 Dimmable

3000K CRI 97 – 740 lm
84521 ON-OFF / PWM Dimmable
89521 0-10 / 1-10V Dimmable
88521 DALI 2 Dimmable

Include “nido d’ape” e ottica 20°

Cavo regolabile.

Download

Kg 0.25

Sospensione con diffusore

Bianco
1 x 9W – 48V

2700K CRI 97 – 728 lm
83370 ON-OFF / PWM Dimmable
86370 0-10 / 1-10V Dimmable
87370 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83371 ON-OFF / PWM Dimmable
86371 0-10 / 1-10V Dimmable
87371 DALI 2 Dimmable

Nero
1 x 9W – 48V

2700K CRI 97 – 728 lm
83570 ON-OFF / PWM Dimmable
86570 0-10 / 1-10V Dimmable
87570 DALI 2 Dimmable

3000K CRI 97 – 770 lm
83571 ON-OFF / PWM Dimmable
86571 0-10 / 1-10V Dimmable
87571 DALI 2 Dimmable

Cavo regolabile.

Download

Kg 0.23
