Viavai

DUO

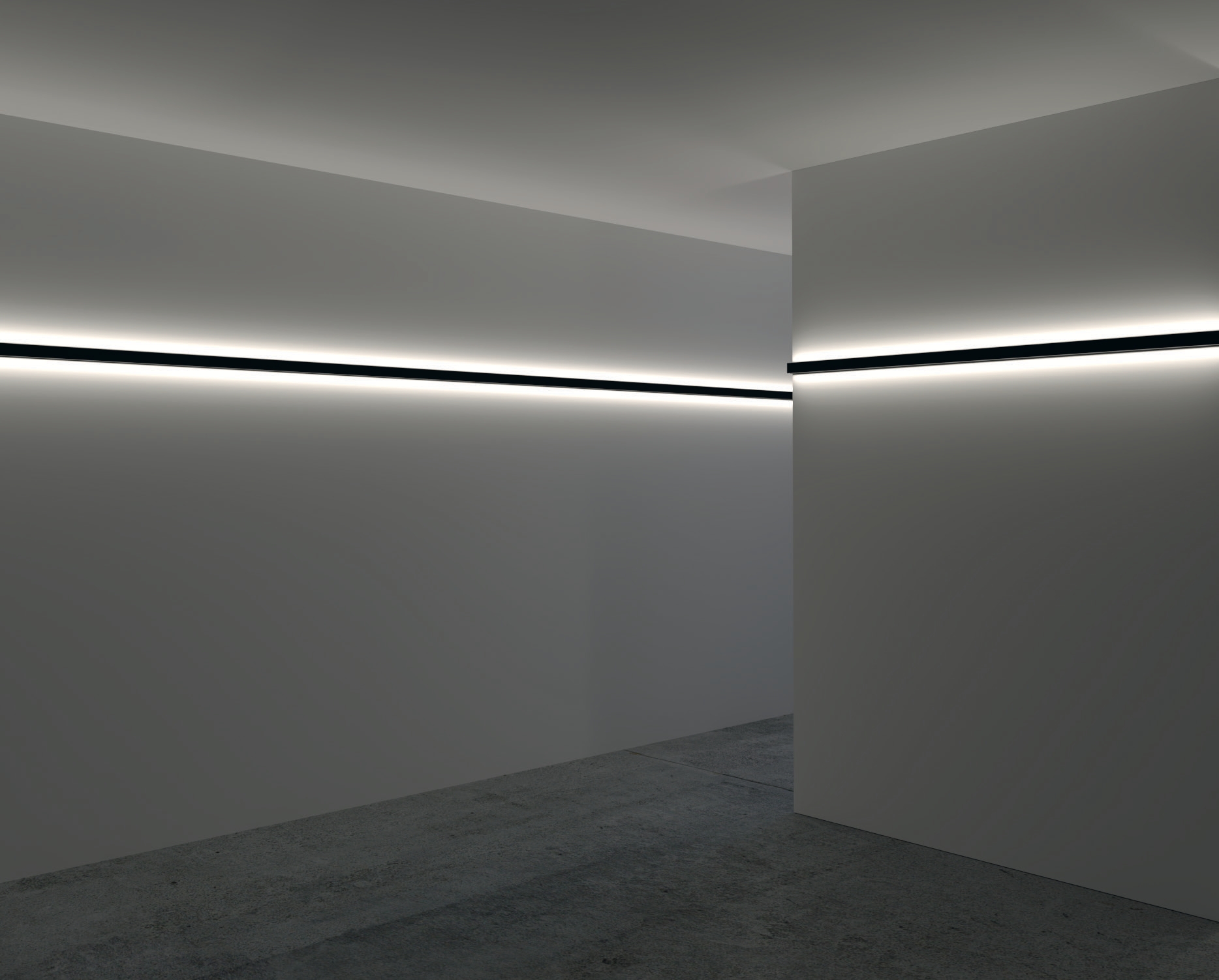

The VIAVAI MONO S track is made of extruded aluminum and finished with epoxy paint in black and white colours.
Cuttable to size, it is installed suspended and allows the accommodation of the LED strip for indirect lighting. Maximum capacity 10A.

DUO S suspension track
DUO W wall track

100 cm

100 cm

16311 White
16511 Black

16312 White
16512 Black

200 cm

200 cm

16321 White
16521 Black

16322 White
16522 Black

300 cm

300 cm

16331 White
16531 Black

16332 White
16532 Black

Track in extruded aluminum, cuttable to size. Suspended
ceiling fixing.

Track in extruded aluminum, cuttable to size. Wall fixing.

Download
Download

Kg 1 / 100 cm

Kg 1 / 100 cm

DUO S suspension track

100 cm

16311 White
16511 Black

200 cm

16321 White
16521 Black

300 cm

16331 White
16531 Black

Track in extruded aluminum, cuttable to size. Suspended
ceiling fixing.

Download

Kg 1 / 100 cm

DUO W wall track

100 cm

16312 White
16512 Black

200 cm

16322 White
16522 Black

300 cm

16332 White
16532 Black

Track in extruded aluminum, cuttable to size. Wall fixing.

Download

Kg 1 / 100 cm

Power feed
Power feed
Linear coupling
90° joint

For DUO S

For DUO S

For DUO S / DUO W

For DUO S / DUO W

16335 White
16535 Black

16334 White
16534 Black

16337 White
16537 Black

16338 White
16538 Black

For DUO W

16345 White
16545 Black

Optional

Optional

16370 White
16570 Black

Power wiring 250 cm. Includes connection rosette.

16370 White
16570 Black

Power wiring 250 cm. Includes connection rosette.

Head power feed, to be combined with a remote 48V power supply.

Head power feed, to be combined with a remote 48V power supply.

Enables the mechanical and electrical connection between two tracks.

Enables the mechanical and electrical connection between two tracks.

Download
Download
Download
Download

Kg 0.32

Kg 0.34

Kg 0.34

Kg 0.36

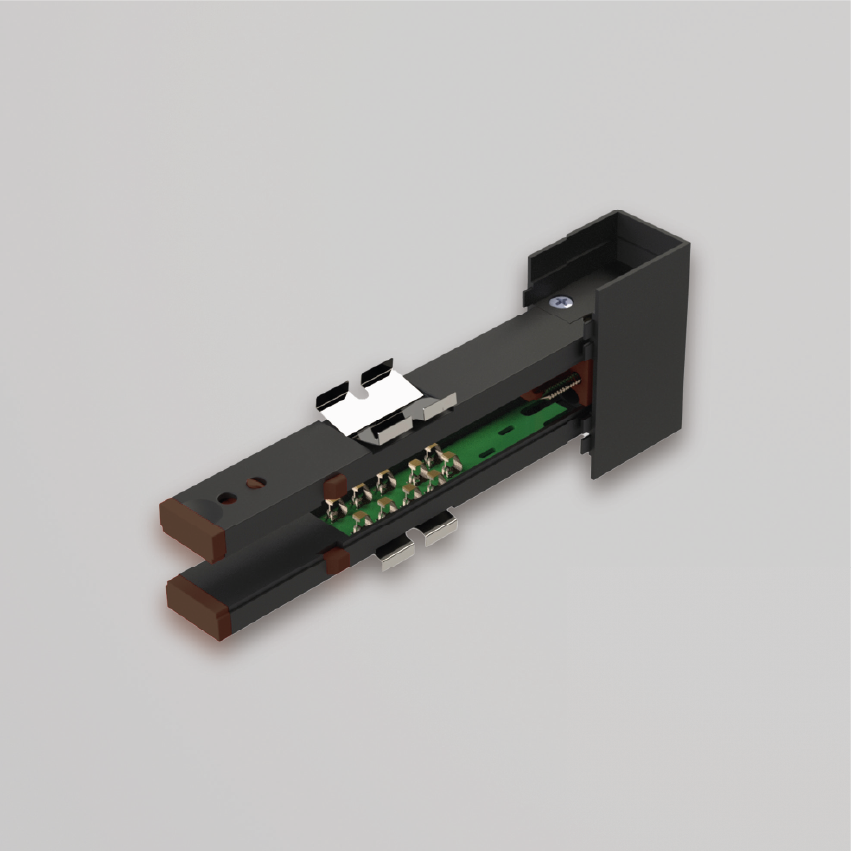

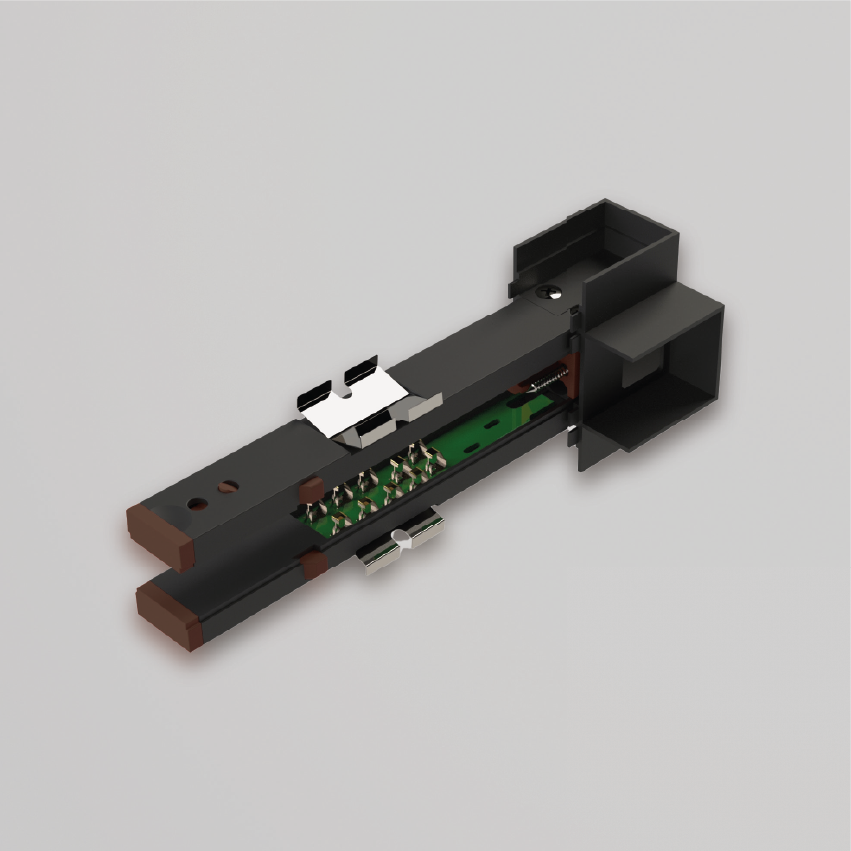

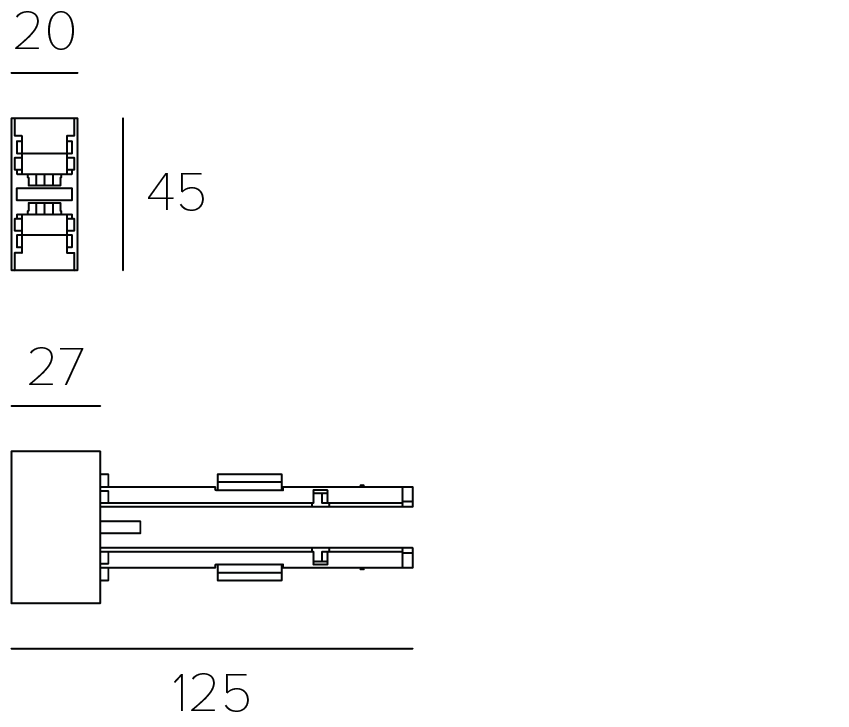

Power feed

For DUO S

16335 White
16535 Black

For DUO W

16345 White
16545 Black

Optional

16370 White
16570 Black

Power wiring 250 cm. Includes connection rosette.

Head power feed, to be combined with a remote 48V power supply.

Download

Kg 0.32

Power feed

For DUO S

16334 White
16534 Black

Optional

16370 White
16570 Black

Power wiring 250 cm. Includes connection rosette.

Head power feed, to be combined with a remote 48V power supply.

Download

Kg 0.34

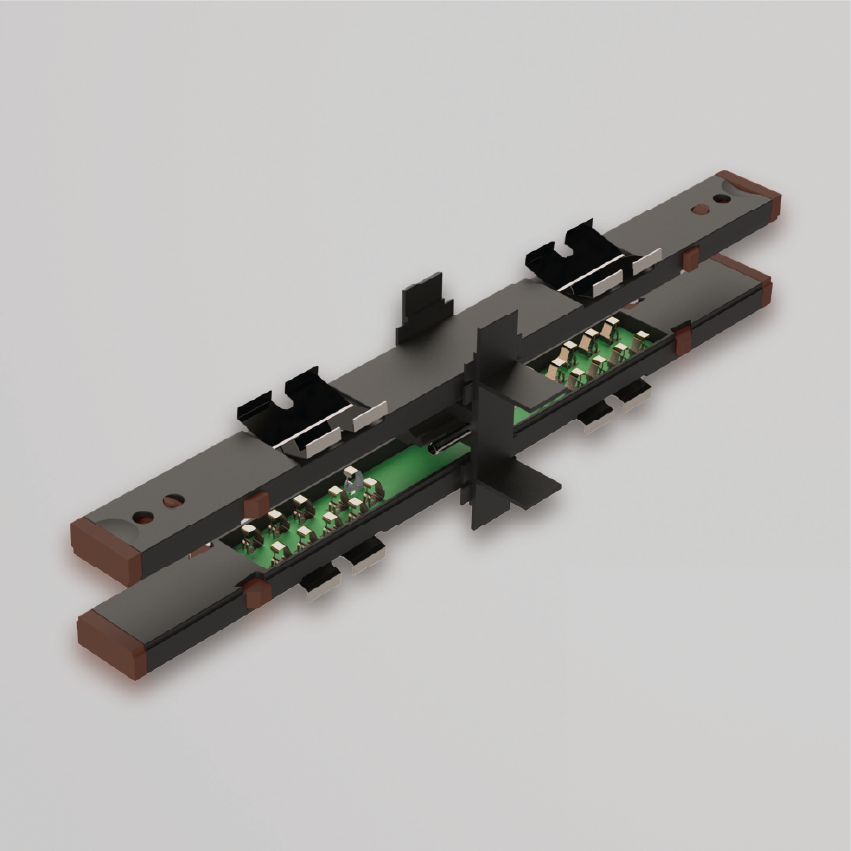

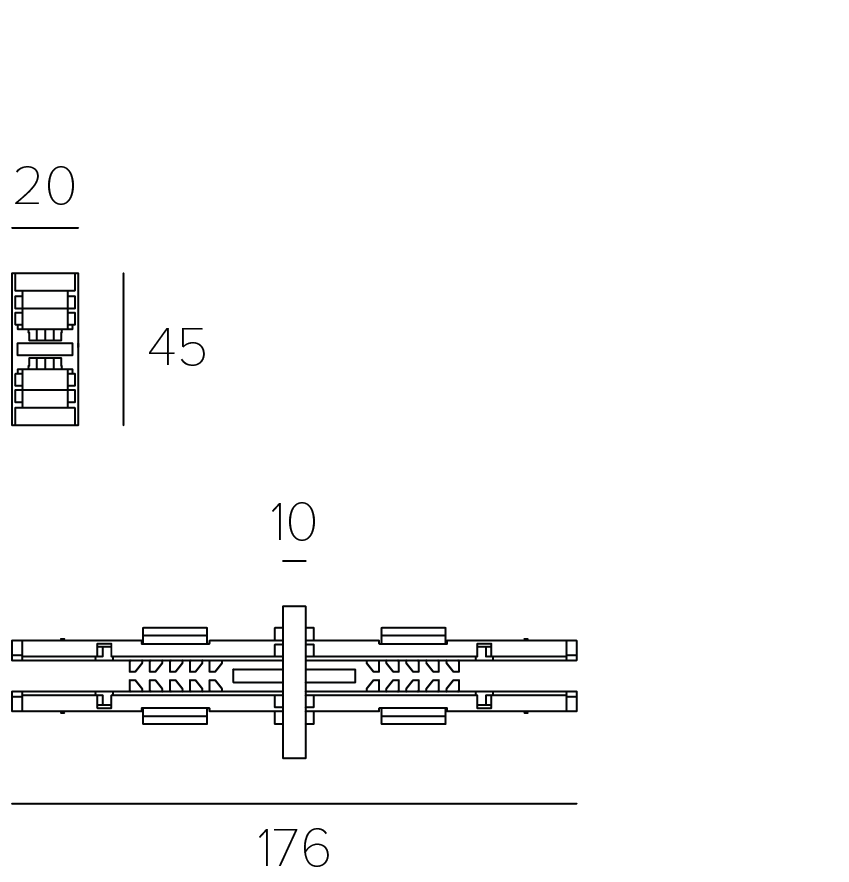

Linear coupling

For DUO S / DUO W

16337 White
16537 Black

Enables the mechanical and electrical connection between two tracks.

Download

Kg 0.34

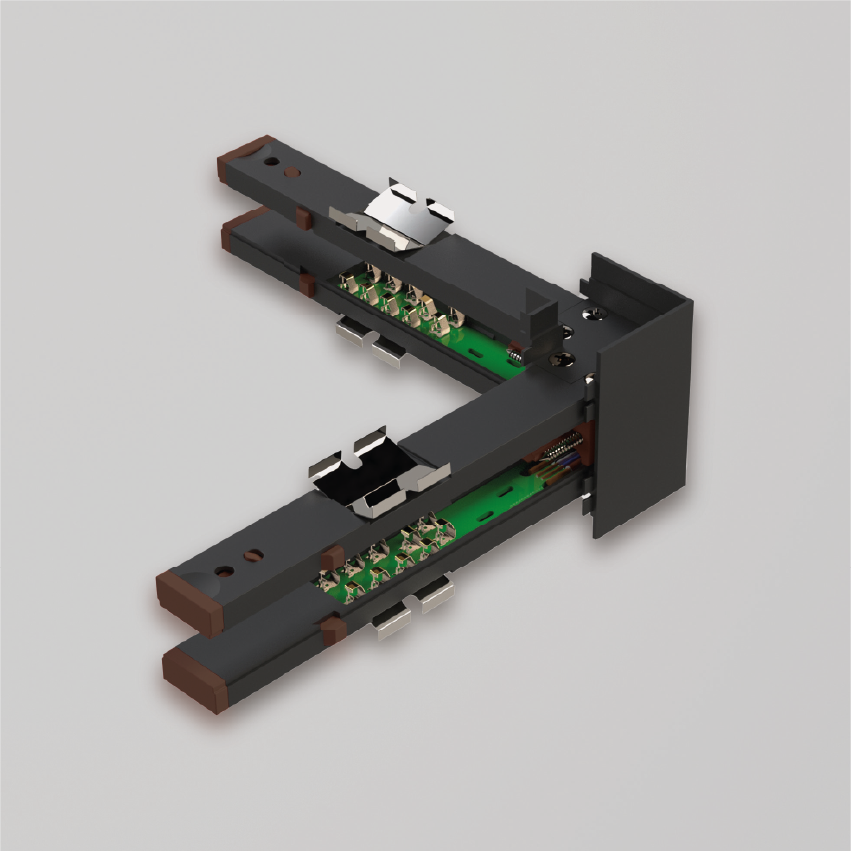

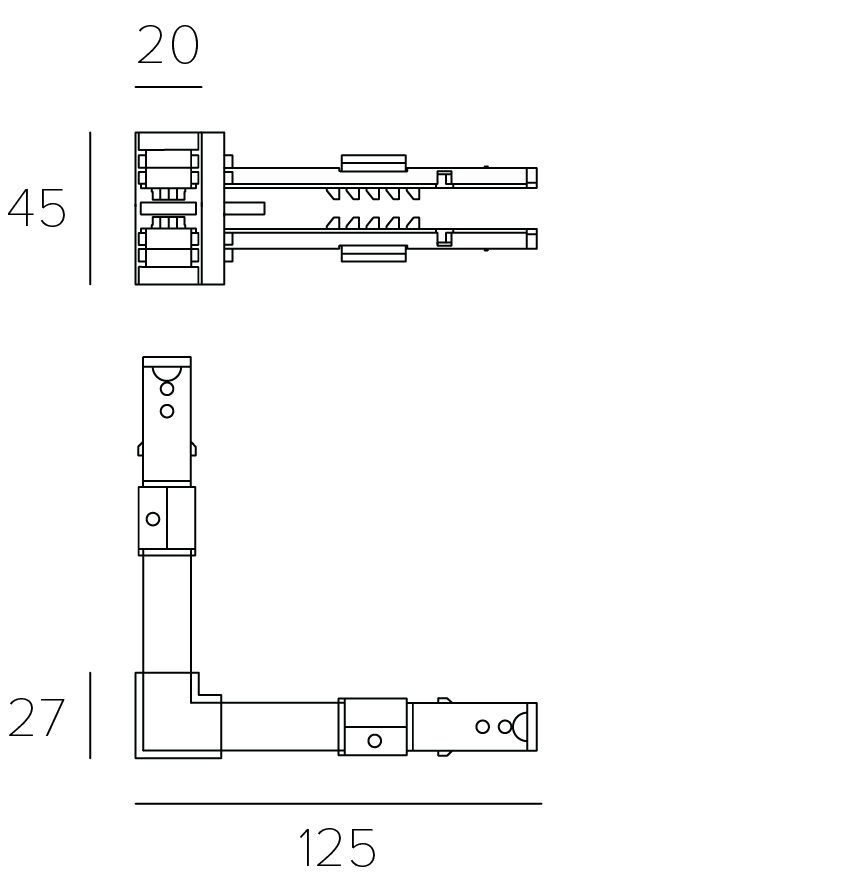

90° joint

For DUO S / DUO W

16338 White
16538 Black

Enables the mechanical and electrical connection between two tracks.

Download

Kg 0.36

Closing terminal
Suspension accessory
Closing profile
Internal closing profile

For DUO S

For DUO S

For DUO S / DUO W

For DUO S / DUO W

16339 White
16539 Black

16344 White
16544 Black

16316 White
16516 Black

16317 White
16517 Black

For DUO W

Must be used on the upper part of the track.

Must be used on the upper part of the track.

16347 White
16547 Black

Enables the electrical connection of the lower line even when only the upper line is fed.

The use of a support every 100 cm of the track allows for a maximum load of 5 Kg per meter. Install the ceiling support near the terminal parts of the installation and near the joints.
Plate with holes for track balance.

Extruded polycarbonate for closing flush with the track..

Extruded polycarbonate for the internal closure of the track.

Download
Download
Download
Download

Kg 0.58

Kg 0.34

Kg 0.30 / 100 cm

Kg 0.30 / 100 cm

Closing terminal

For DUO S

16339 White
16539 Black

For DUO W

16347 White
16547 Black

Enables the electrical connection of the lower line even when only the upper line is fed.

Download

Kg 0.58

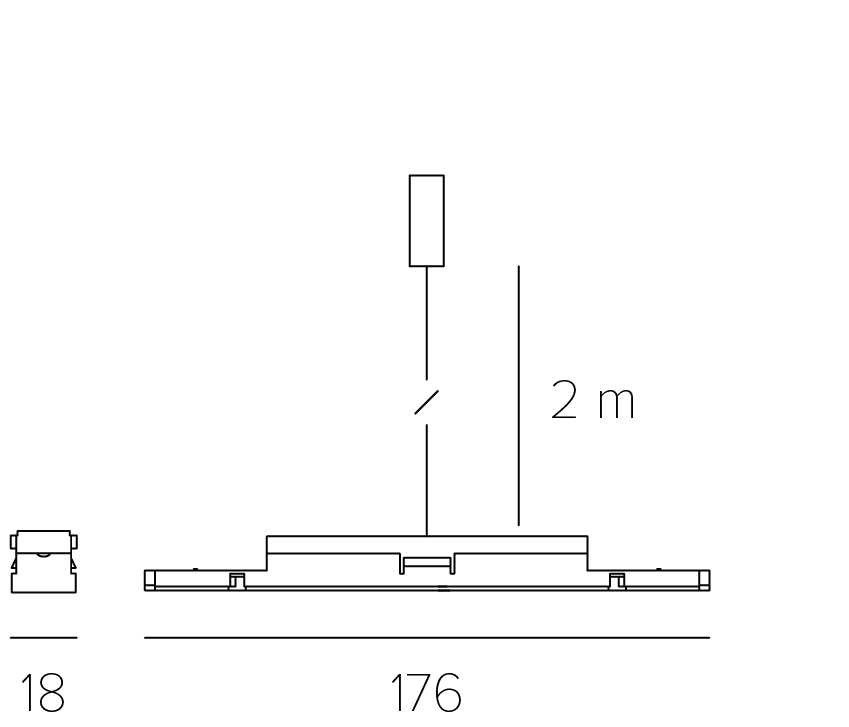

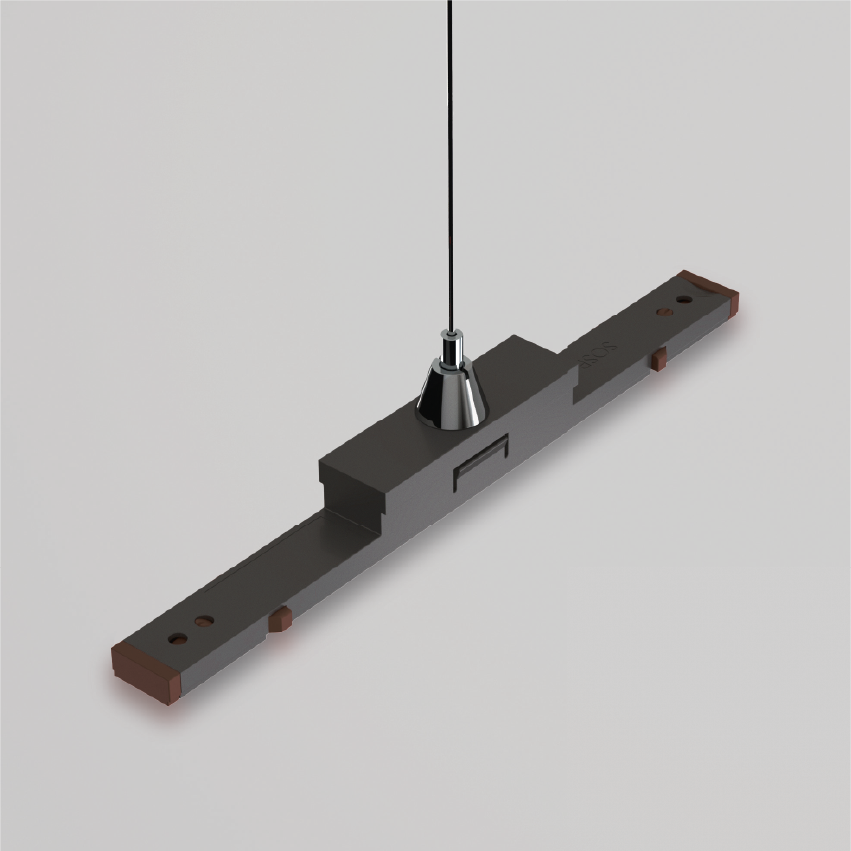

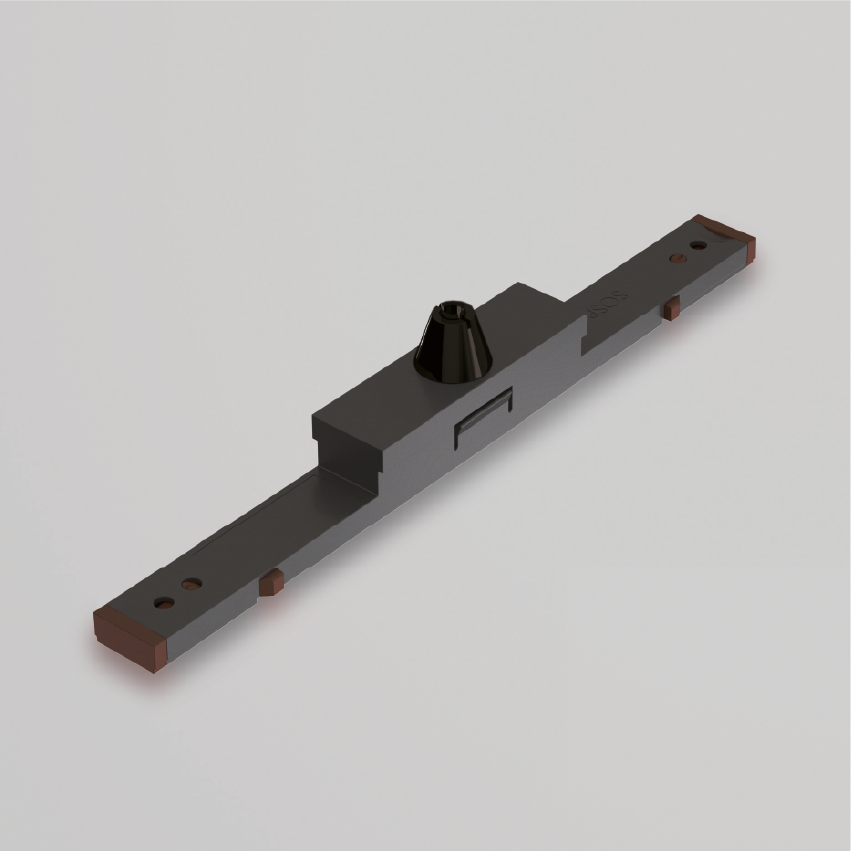

Suspension accessory

For DUO S

16344 White
16544 Black

The use of a support every 100 cm of the track allows for a maximum load of 5 Kg per meter. Install the ceiling support near the terminal parts of the installation and near the joints.
Plate with holes for track balance.

Download

Kg 0.34

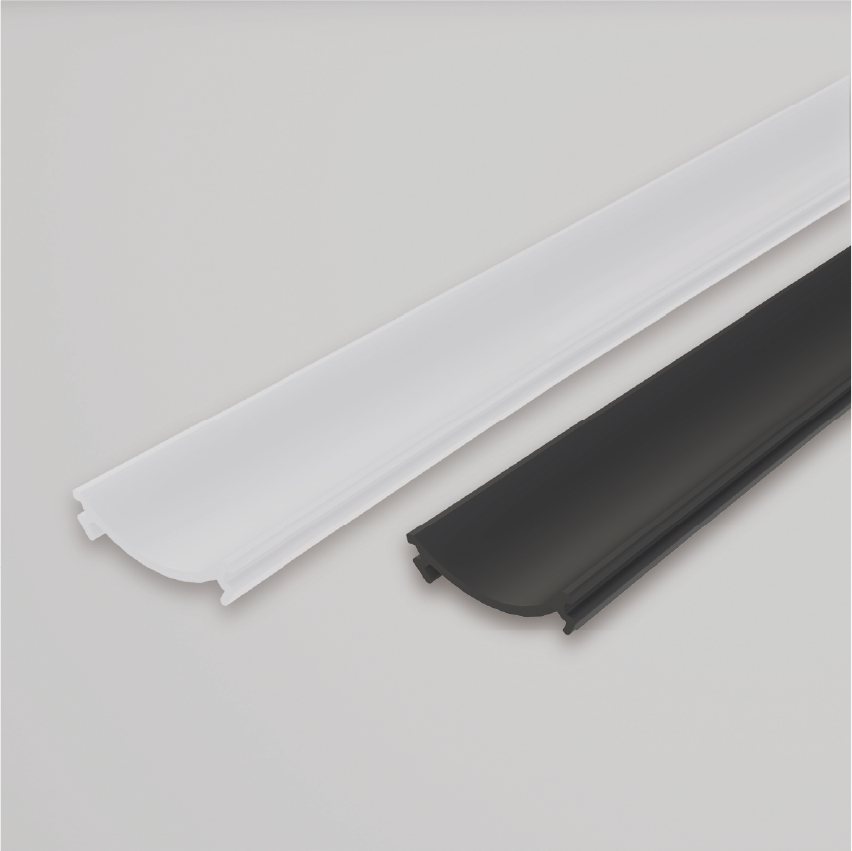

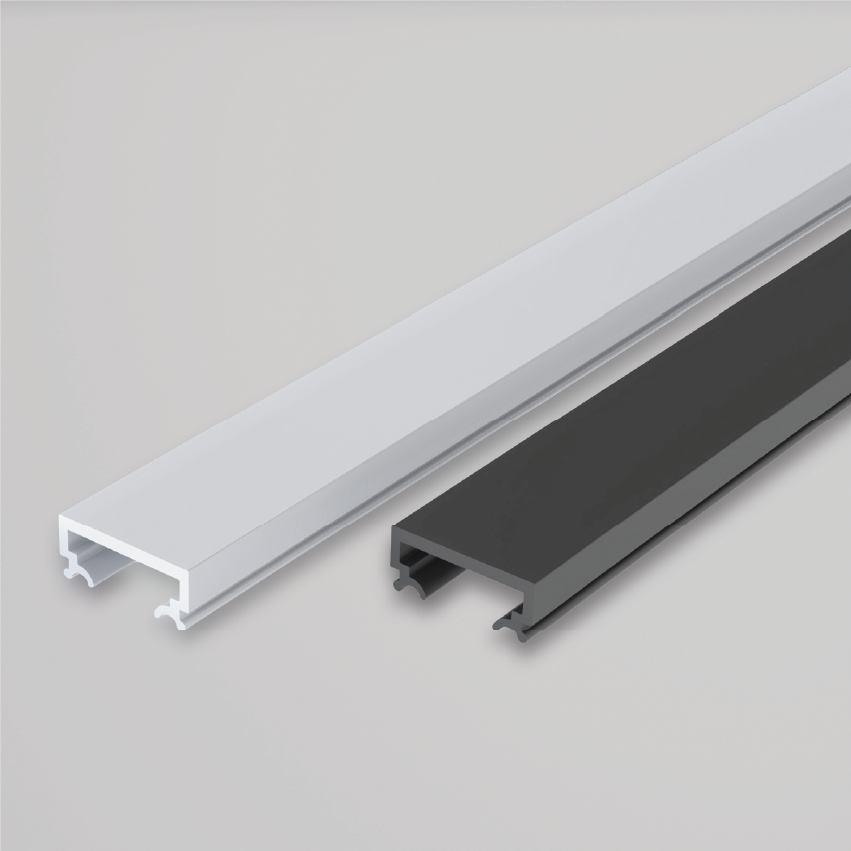

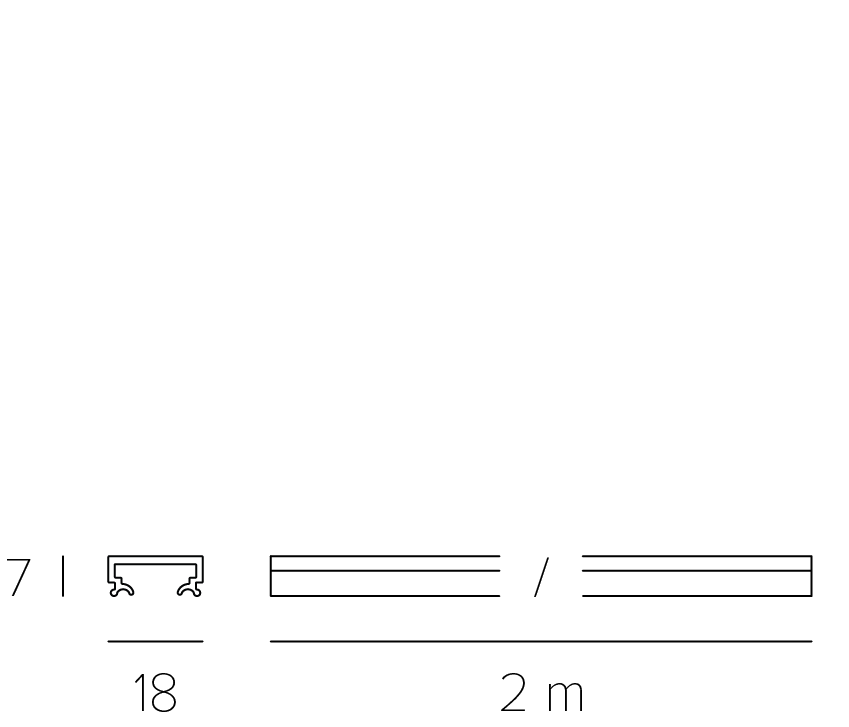

Closing profile

For DUO S / DUO W

16316 White
16516 Black

Must be used on the upper part of the track.

Extruded polycarbonate for closing flush with the track..

Download

Kg 0.30 / 100 cm

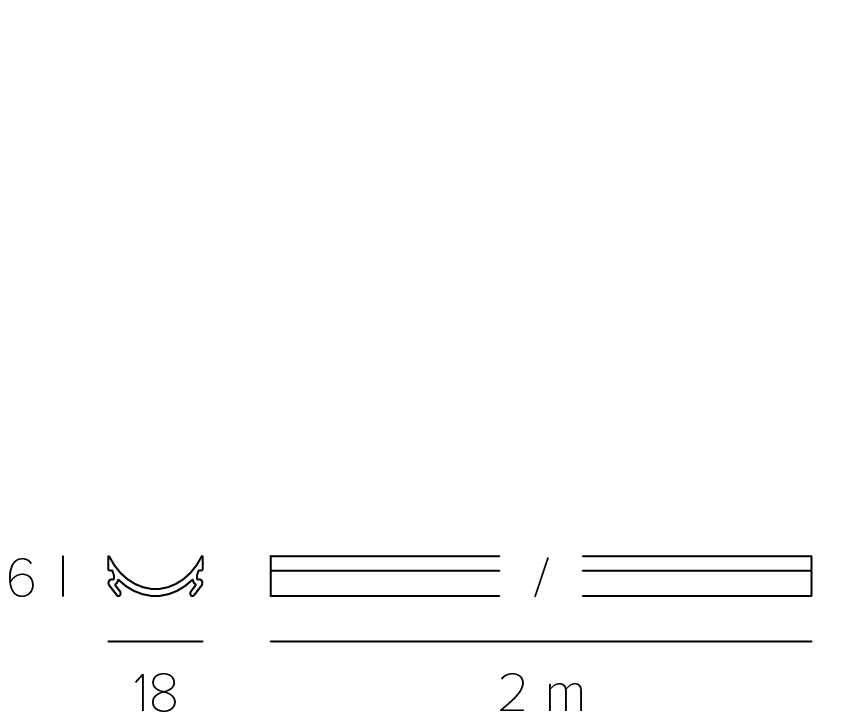

Internal closing profile

For DUO S / DUO W

16317 White
16517 Black

Must be used on the upper part of the track.

Extruded polycarbonate for the internal closure of the track.

Download

Kg 0.30 / 100 cm
